2x3 Double A Offset Downspout Elbow 6 Inch Aluminum White Brown Black

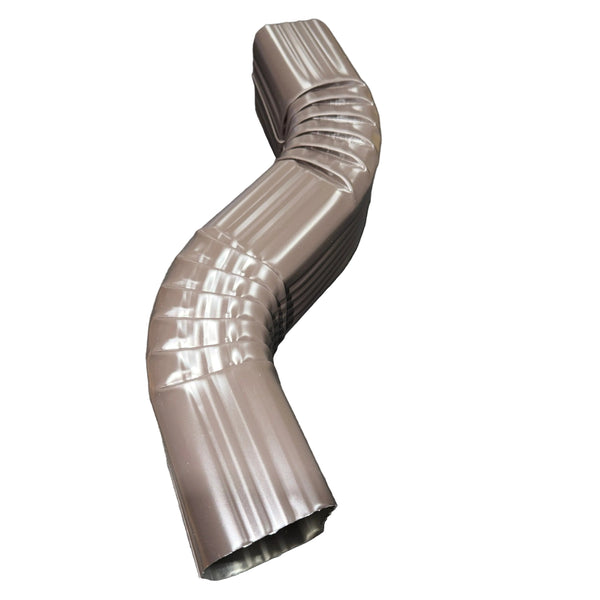

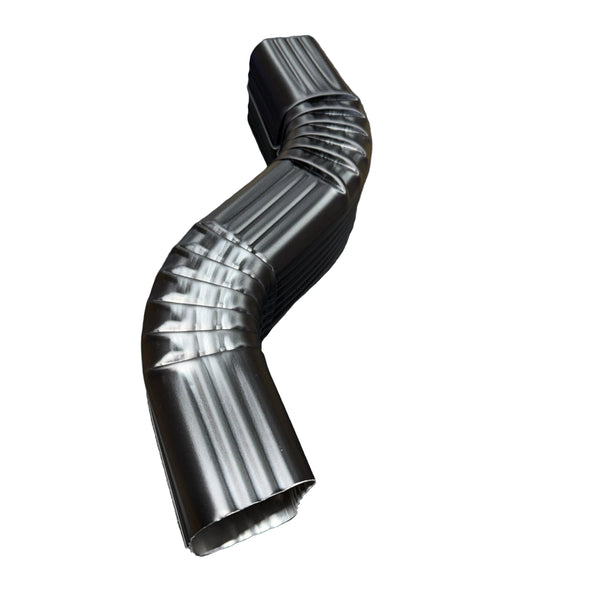

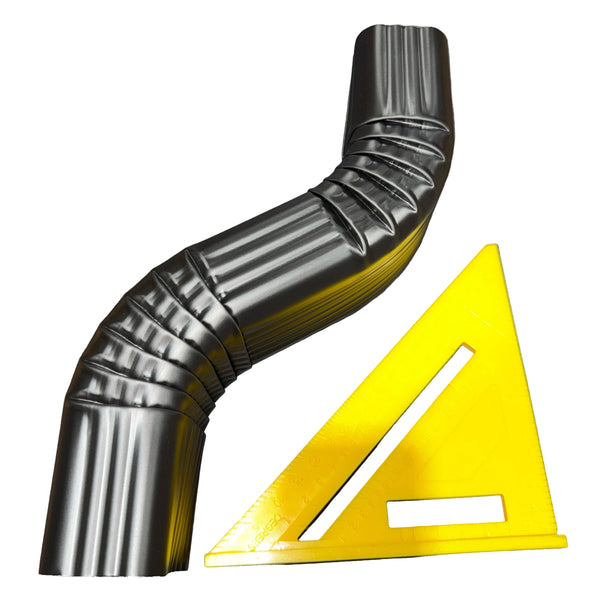

2x3" Double A Offset Downspout Elbow — 6 Inch Aluminum

Pre-Assembled | 6" Horizontal Clearance | 11" Total Height | White, Musket Brown, Black

The Obstacle Problem — When Downspouts Run Into Windows, Doors, and Trim

Every gutter contractor has faced it. The gutter outlet drops straight down from the fascia — and directly into a window frame, door header, or decorative trim piece. The downspout cannot run straight. It needs to move horizontally around the obstacle, then return to vertical alignment to reach the ground. The standard solution is field-fabricating an offset: cutting two 45-degree elbows, measuring the horizontal distance, cutting a connecting section, assembling the pieces on-site, and hoping the angles align properly. This takes time. It creates waste. And if the angles are off, water flow suffers — turbulence at the joints, reduced drainage capacity, and potential leak points at every connection. The 2x3" Double A Offset Downspout Elbow — also called an S-offset, downspout jog, gutter offset elbow, downspout diverter, obstacle bypass elbow, and pre-bent downspout elbow — eliminates field fabrication entirely. Two 45-degree bends are pre-assembled with a center section into a single unit that provides exactly 6 inches of horizontal clearance. Drop it in, secure the connections, and move to the next downspout. For gutter installers who want to reduce on-site fabrication time and eliminate the guesswork of piecing together offsets, the Double A Offset delivers consistent results job after job. Premium aluminum construction in White, Musket Brown, and Black matches common residential and commercial color schemes. GutterAll supplies 2x3 Double A Offset downspout elbows to gutter contractors throughout the Pacific Northwest and nationally from the Damascus, Oregon location.

Pre-Assembled | 6" Horizontal Clearance | 11" Total Height | Three Color Options | 2x3 Standard Fit

Key Benefits at a Glance

The Field Fabrication Problem — Why Piecing Together Offsets Wastes Time

Residential and commercial buildings rarely have perfectly clear fascia runs. Windows sit below rooflines. Door frames extend upward. Decorative trim, shutters, light fixtures, and electrical boxes all create obstacles that block the natural vertical path of a downspout. When a downspout outlet lands above an obstacle, the installer has two choices: relocate the outlet (which may not be possible) or offset the downspout around the obstacle.

Traditional offset fabrication requires cutting two separate 45-degree elbows, measuring and cutting a horizontal connector section, and assembling the three pieces on-site. Each cut introduces potential error. Each joint creates a potential leak point. If the angles do not align precisely, water flow becomes turbulent — reducing drainage capacity and increasing debris accumulation inside the downspout. For contractors doing multiple downspouts per job, field fabrication adds up: 10-15 minutes per offset, multiplied across every obstacle on every building.

The 2x3" Double A Offset Downspout Elbow — also known as an S-offset, downspout jog, gutter offset elbow, downspout diverter, obstacle bypass elbow, and pre-bent downspout elbow — solves this with a single pre-assembled unit. Two 45-degree bends and a center connector section are factory-assembled into one continuous piece with 6 inches of horizontal clearance and 11 inches of total height. The angles are pre-set. The joints are pre-aligned. Installation takes seconds instead of minutes. For contractors who want to reduce on-site labor and deliver consistent results, the Double A Offset is the professional choice. GutterAll supplies 2x3 Double A Offset downspout elbows to gutter contractors throughout the Pacific Northwest and nationally. Contact sales@gutterall.com for contractor pricing. Available for in-store pickup at 19759 SE Sunnyside Rd, Damascus, OR 97089, local delivery in the Portland metro area, or shipping to all 50 states.

Why This Matters — The Hidden Cost of On-Site Fabrication

Time is money on every job site. Every minute spent cutting, measuring, and piecing together offset elbows is a minute not spent on the next downspout — or the next job. For contractors doing 10, 20, or 50 downspouts per week, field fabrication time compounds into hours of labor that could be eliminated.

Beyond labor, field-fabricated offsets introduce variability. One installer cuts at 44 degrees, another at 46. One connector section is 5.75 inches, another is 6.25. These small differences affect water flow, joint tightness, and long-term durability. Callbacks on leaking or misaligned offsets cost more than the original installation.

The Double A Offset eliminates this variability. Every unit is factory-assembled to the same specification: exactly 6 inches of horizontal clearance, exactly 11 inches of total height, exactly matched 45-degree angles. The result is consistent performance, consistent appearance, and consistent installation time across every job.

Pre-assembled. 6 inches of clearance. 11 inches total height. Three colors. Standard 2x3 fit.

Start a chat now or email sales@gutterall.com for contractor pricing.

How the Double A Offset Works — Water Flow Path

First 45-Degree Bend: Water exits the upper downspout section and enters the first angled section of the offset. This bend directs flow outward at a 45-degree angle, beginning the horizontal transition around the obstacle.

Center Section: The horizontal connecting section carries water across the 6-inch offset distance. The factory-aligned geometry maintains laminar flow through the transition — no sharp corners or misaligned joints to create turbulence or debris traps.

Second 45-Degree Bend: The second angled section returns water to vertical alignment. Water exits the offset and continues straight down into the lower downspout section. Total vertical drop through the offset is 11 inches.

Three Color Options — Match Any Gutter System

Dimensions and Clearance — 6 Inch Horizontal, 11 Inch Vertical

6 Inch Horizontal Clearance: The offset moves the downspout 6 inches horizontally from its starting position. This clearance is sufficient for most standard window frames (typically 3-4 inches of trim), door headers, decorative shutters, and common architectural obstacles found on residential and light commercial buildings.

11 Inch Total Height: The complete offset unit measures approximately 11 inches from top to bottom. This vertical dimension should be factored into downspout length calculations when planning installations.

2x3 Inch Standard Fit: Both ends of the offset accept standard 2x3 inch rectangular downspouts — the most common residential size. The upper end receives the downspout from above; the lower end connects to the downspout section below. No adapters or reducers required.

Work Applications — Where Double A Offsets Get Used

The 2x3" Double A Offset Downspout Elbow supports professional installations across residential and commercial applications:

Pre-Assembled. 6" Clearance. 11" Height. Three Colors. Standard 2x3 Fit.

Start a chat for fastest response or email sales@gutterall.com

Premium Aluminum Construction — Built for Outdoor Durability

Corrosion Resistance: Aluminum naturally forms a protective oxide layer that resists rust and corrosion. Unlike steel elbows that require galvanizing or painting, aluminum maintains its finish through years of rain, snow, and UV exposure without degradation.

Thermal Stability: Aluminum handles repeated freeze-thaw cycles without cracking or deforming. The metal expands and contracts with temperature changes, but the factory-assembled joints maintain alignment season after season.

Lightweight Handling: At 0.7 lbs per unit, the Double A Offset is easy to handle on ladders and scaffolding. Lighter weight reduces installer fatigue on multi-downspout jobs and simplifies overhead work.

Key Features and Contractor Benefits

The 2x3" Double A Offset Downspout Elbow — also known as an S-offset, downspout jog, gutter offset elbow, downspout diverter, obstacle bypass elbow, and pre-bent downspout elbow — eliminates on-site fabrication when routing downspouts around windows, doors, trim, and other obstacles. Two factory-aligned 45-degree bends and a center connector section provide exactly 6 inches of horizontal clearance and 11 inches of total height in a single pre-assembled unit. Premium aluminum construction resists rust and corrosion while maintaining alignment through repeated freeze-thaw cycles. Available in White, Musket Brown, and Black to match common residential and commercial color schemes. For gutter contractors who want to reduce installation time and deliver consistent results, the Double A Offset is the professional alternative to field fabrication. GutterAll supplies 2x3 Double A Offset downspout elbows to gutter contractors throughout the Pacific Northwest and nationally. Contact sales@gutterall.com for contractor pricing on quantity orders. Available for in-store pickup at 19759 SE Sunnyside Rd, Damascus, OR 97089, local delivery in the Portland metro area, or shipping to all 50 states. Monday through Friday 7am to 4pm, Saturday 9am to 12pm PST.

Why Contractors Use Pre-Assembled Double A Offsets:

• Pre-Assembled Design: No field cutting, measuring, or piecing required
• 6" Horizontal Clearance: Routes around windows, doors, and trim
• 11" Total Height: Predictable dimension for layout planning
• Factory-Aligned Angles: Consistent 45-degree bends every time
• Smooth Water Flow: No misaligned joints to create turbulence
• Reduced Installation Time: Seconds instead of minutes per offset
• Premium Aluminum: Rust-resistant, lightweight, durable
• Thermal Stability: Maintains alignment through freeze-thaw cycles
• Three Color Options: White, Musket Brown, Black
• Pre-Finished Surface: No painting required; fade-resistant
• 2x3 Standard Fit: Direct connect to most residential downspouts
• No Adapters Needed: Works with standard 2x3 accessories
• Lightweight Handling: 0.7 lbs per unit; easy ladder work
• Consistent Results: Same specification every unit, every job
• Local Pacific NW Stock: Available from Damascus, Oregon

Product Specifications

Who Uses Double A Offset Downspout Elbows

Installation Guide — 2x3" Double A Offset Downspout Elbow

1. Measure the obstacle: Confirm that 6 inches of horizontal clearance is sufficient for the window frame, door header, or other obstacle. Allow at least 1 inch of clearance beyond the obstacle edge.
2. Plan the downspout run: Mark the vertical path from the gutter outlet to the ground, including the offset position. Factor in the 11-inch vertical drop through the offset when calculating total downspout length.
3. Cut the upper downspout section: Measure and cut the downspout section that runs from the gutter outlet to the top of the offset. Allow for proper overlap at the connection.
4. Connect the upper downspout to the offset: Insert the lower end of the upper downspout section into the top opening of the Double A Offset. Ensure proper overlap (typically 1-2 inches).
5. Secure the upper connection: Fasten with sheet metal screws or pop rivets appropriate for aluminum. Use 2-3 fasteners around the perimeter for a secure connection.
6. Position the offset against the wall: Hold the offset in place and verify clearance from the obstacle. The offset should clear the obstacle with at least 1 inch of space.
7. Mount the offset: Secure the offset to the wall using appropriate downspout brackets or straps. Position brackets above and below the offset to prevent movement.
8. Connect the lower downspout section: Insert the lower downspout section into the bottom opening of the offset. Ensure proper overlap and alignment.
9. Secure the lower connection: Fasten with sheet metal screws or pop rivets. Apply sealant to the joint if the connection will be exposed to debris accumulation or standing water.
10. Test the installation: Run water through the gutter system and observe flow through the offset. Check all connections for leaks and verify the downspout is properly aligned.

Pre-Assembled. 6" Horizontal Clearance. 11" Total Height. Three Colors. Standard 2x3 Fit.

Start a chat for fastest response or email sales@gutterall.com.

Mon-Fri 7am-4pm | Sat 9am-12pm PST | (503) 850-6784

Frequently Asked Questions

Installation Safety Notice

Downspout installation requires working at height. Always follow proper ladder safety protocols and use OSHA-approved fall protection equipment when working above 6 feet. Wear appropriate gloves when handling cut aluminum edges. Professional installation is recommended for safety and code compliance.

Order 2x3" Double A Offset Downspout Elbow — 6 Inch Aluminum

Pre-assembled design. 6 inches of horizontal clearance. 11 inches total height. White, Musket Brown, or Black. Standard 2x3 fit.

Volume orders and contractor pricing: sales@gutterall.com

Mon-Fri 7am-4pm | Sat 9am-12pm PST | (503) 850-6784

2x3" Double A Offset Downspout Elbow — At a Glance

Pre-Assembled. 6" Horizontal Clearance. 11" Total Height. Three Colors. Standard 2x3 Fit.
