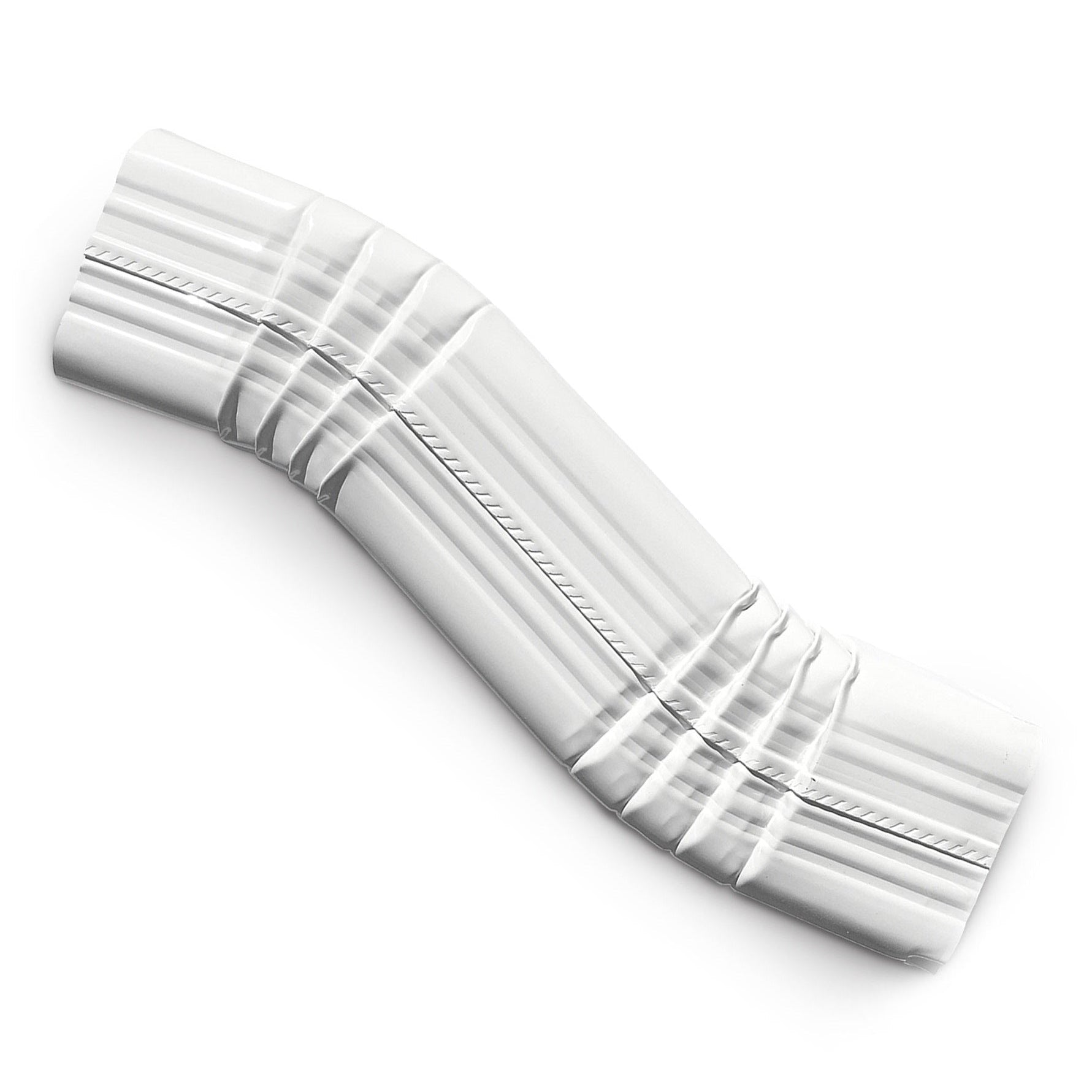

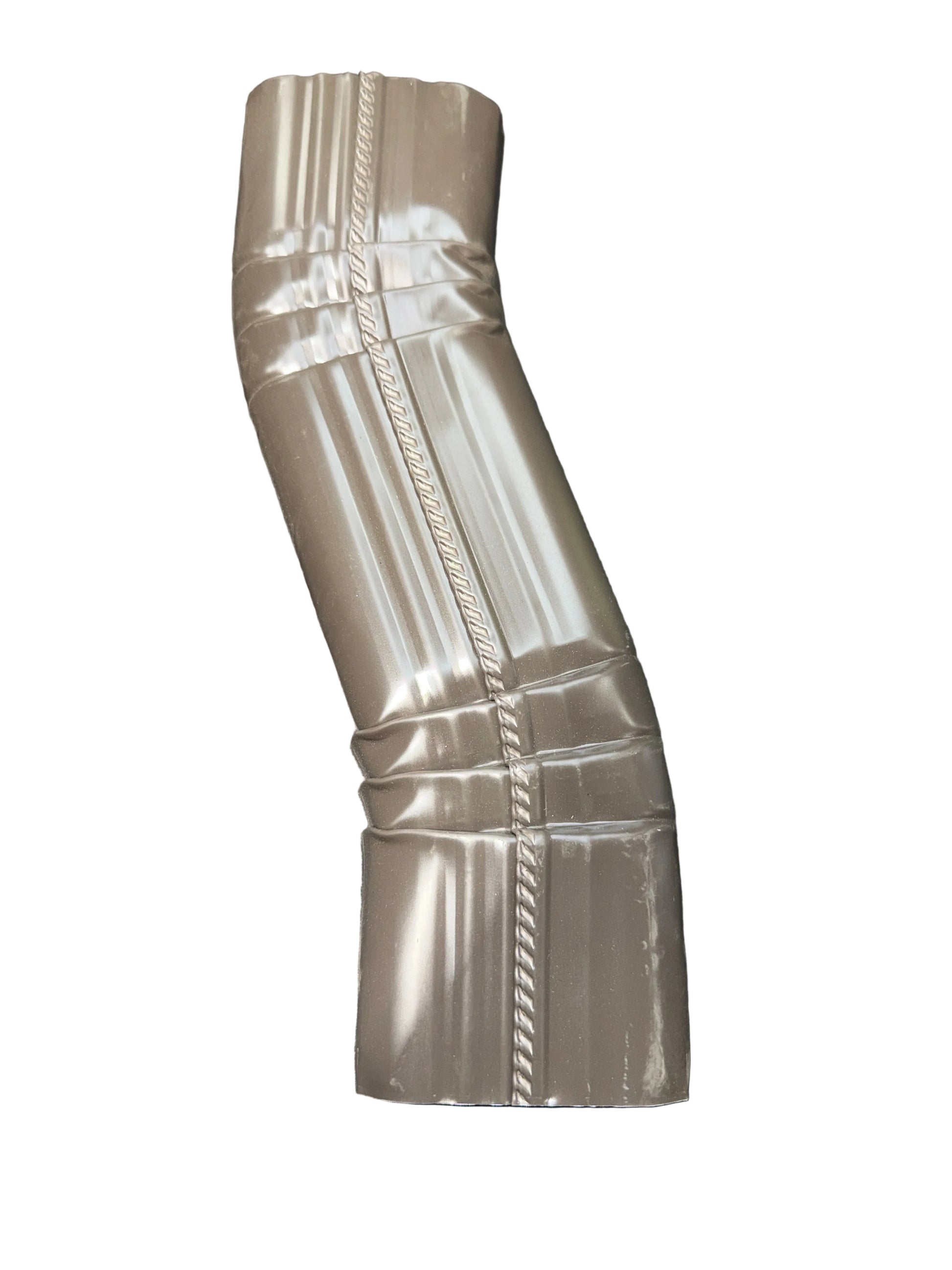

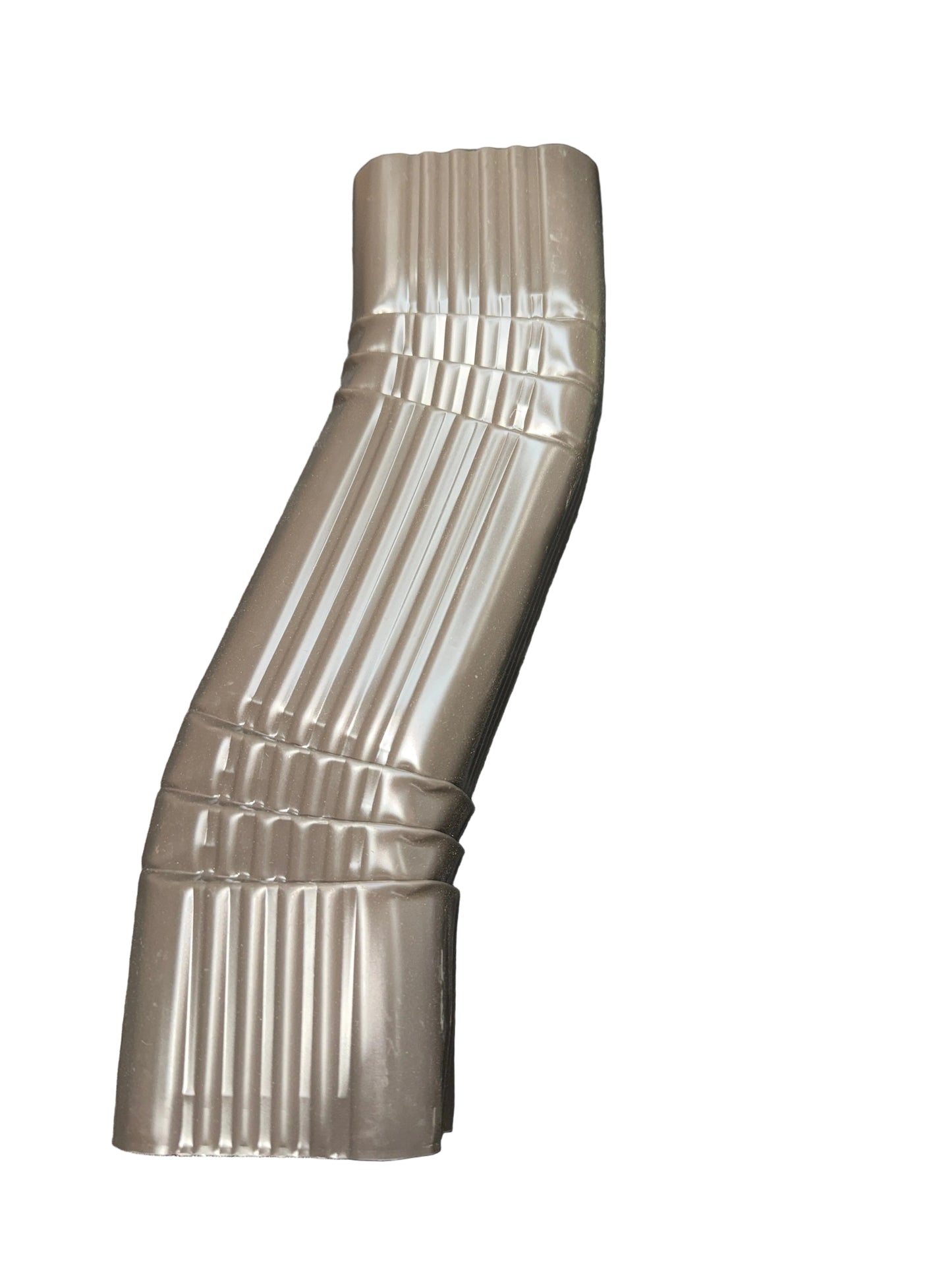

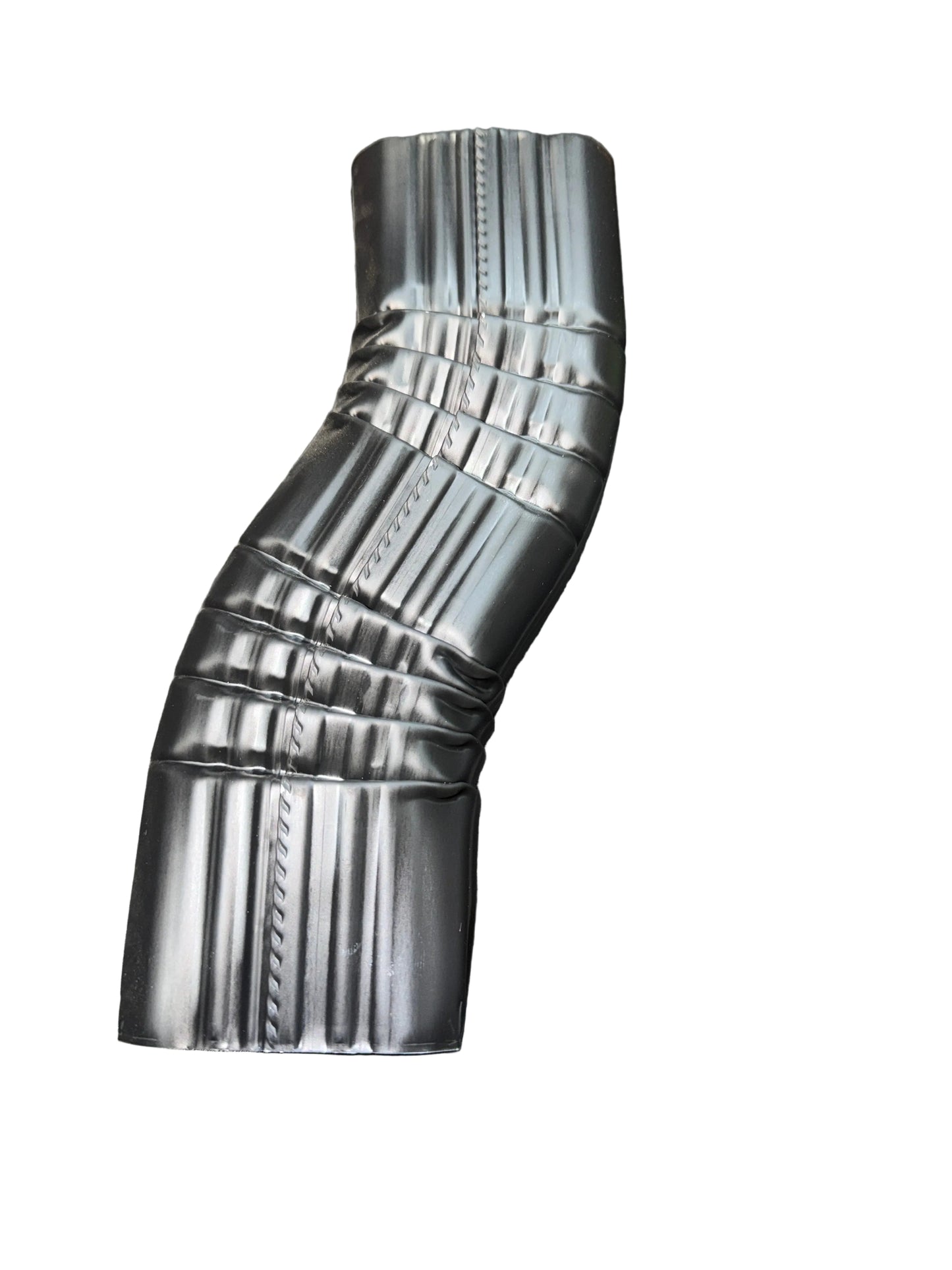

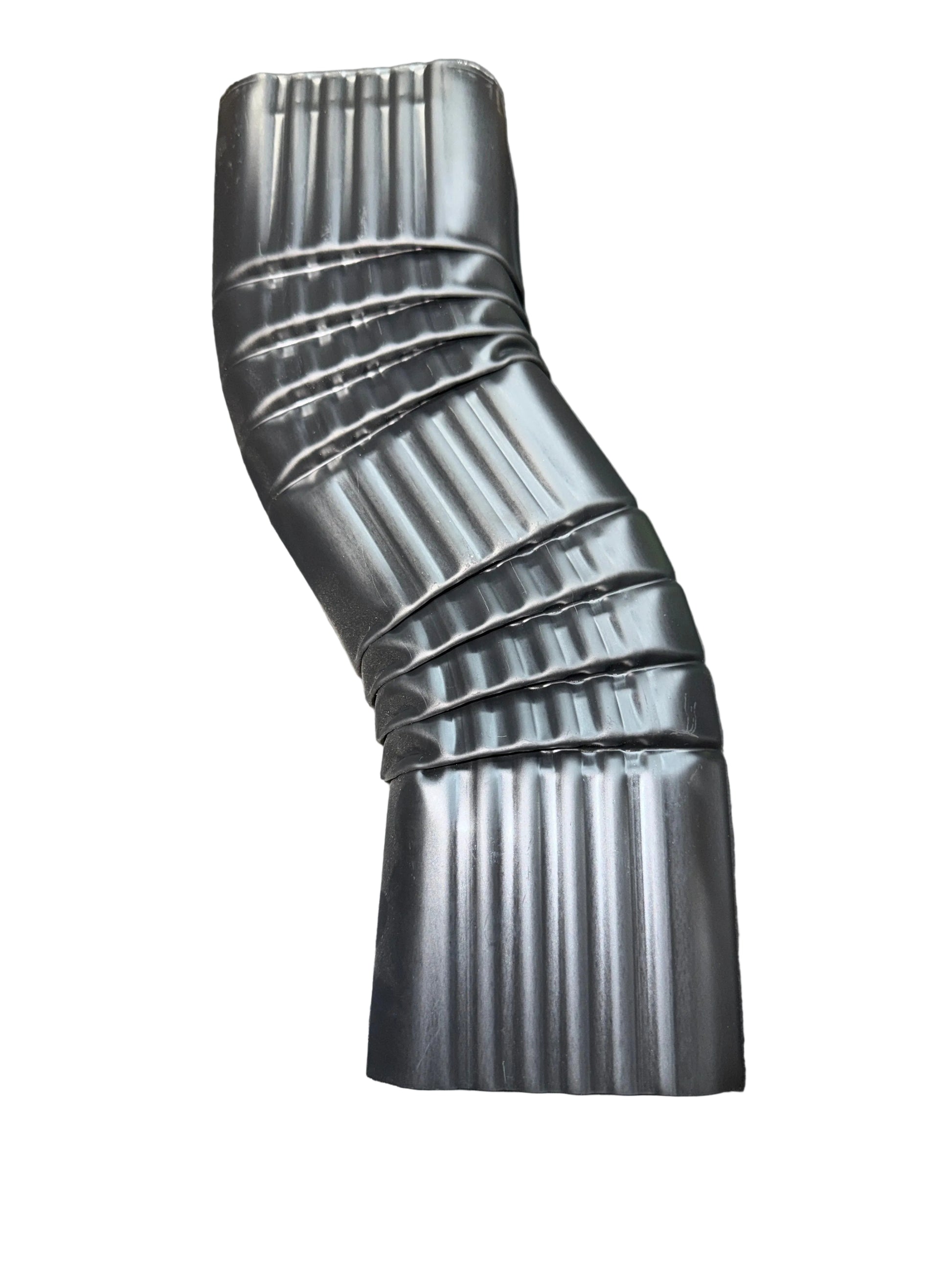

2x3 Aluminum Double B Offset Downspout Elbow 2 Inch Clearance
2x3 Aluminum Double B Offset Downspout Elbow 2 Inch Clearance
Couldn't load pickup availability
2 in Offset | Double B Configuration | 2x3 Downspout Fit | Approx. 11 in Height | Corrugated Aluminum
2x3 Aluminum Double B Offset Downspout Elbow — 2 in Clearance
Route a 2x3 downspout around small obstacles without turning the exterior wall into a crooked metal puzzle. This pre-assembled Double B offset elbow gives installers a compact 2 in horizontal clearance while returning the downspout path back to parallel alignment.
When a Straight Downspout Hits an Obstacle, Do Not Force an Ugly Run
| Installation Problem | Jobsite Consequence | Product Advantage |
|---|---|---|
| Utility line or conduit blocks the run | Forced bends, crushed downspout, sloppy spacing, or a route that rubs the obstacle | The 2 in offset moves the downspout path around minor obstructions while keeping the run compact. |
| Porch corner, trim, or fixture is in the way | Awkward field-built offsets that look patched together | Pre-assembled Double B configuration creates a cleaner S-bend transition without building it from loose parts. |
| Downspout needs to return parallel | A crooked vertical run, poor strap alignment, or a downspout that sticks out too far | The offset redirects the path and brings the downspout back into a parallel line. |
| Wrong clearance size | Too little clearance hits the obstacle; too much clearance makes the run bulky | The 2 in offset is built for compact obstacle clearance where only a small horizontal shift is needed. |
Why Installers Use This Double B Offset Elbow
Compact Obstacle Clearance
The 2 in offset helps the downspout clear small projections without pushing the whole run far off the wall.
Pre-Assembled S-Bend
Double B configuration saves time compared with assembling two elbows and a short straight section in the field.
Parallel Return Path
Moves the downspout around the obstacle and brings the run back into alignment for a cleaner exterior finish.
Corrugated Aluminum Body
Ribbed .019 gauge aluminum matches common 2x3 downspouts and gives the fitting practical jobsite rigidity.
Product Snapshot
| Product Detail | Specification | Why It Matters |
|---|---|---|
| Product Type | Double B offset downspout elbow / S-bend fitting / obstacle clearance fitting | Moves a downspout around a small obstruction and returns the run to parallel alignment. |
| Offset Distance | 2 in horizontal clearance | Best for minor obstacles where a compact offset is enough. |

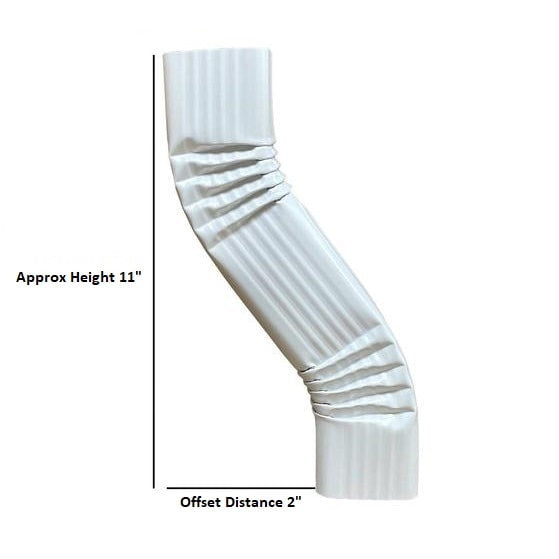

| Total Height | Approximately 11 in | Helps plan cuts, downspout spacing, and where the offset lands on the wall. |
| Downspout Fit | Standard 2x3 rectangular downspouts | Fits common residential 2x3 downspout systems when size and connection direction are correct. |
| Recommended Use Cases | Utility lines, porch corners, window trim, fixtures, compact wall clearances, repairs, and replacements | Useful for installers, repair crews, maintenance teams, and capable DIY buyers routing around small exterior obstructions. |
Product Details
| Product Detail | Specification | Installer Benefit |
|---|---|---|
| Offset Distance | 2 in | Provides compact clearance for minor obstacles without a bulky projection. |
| Total Height | Approximately 11 in | Helps installers calculate where to cut and how the offset fits into the downspout run. |
| Configuration | Double B configuration with two B-style elbows | Creates a ready-to-use S-bend offset without assembling separate elbows and straight sections. |
| Profile Size | 2x3 in rectangular | Matches standard residential 2x3 downspout systems. |
| Actual Opening | 3-1/8 in x 2-1/4 in | Helps confirm fit when replacing or matching existing 2x3 components. |
| Material | Aluminum | Provides a lightweight exterior gutter component that does not rust like steel. |
| Gauge | .019 gauge aluminum | Gives the fitting practical rigidity while staying manageable for ladder work. |
| Profile Style | Corrugated / ribbed | Matches common corrugated downspouts and helps the offset hold shape through the bends. |
| Finish | Factory-applied painted finish | Supports a cleaner finished look when matched to the downspout system. |
| Installation Method | Crimp connection with compatible sheet metal screws | Standard fastening method for a secure downspout connection. |
Gutter Installation Applications
| Application | Why the 2 in Offset Helps | Pre-Install Check |
|---|---|---|
| Utility line clearance | Moves the downspout around minor conduit, cable, or service-line projections. | Confirm the obstacle depth and add practical clearance before choosing the offset size. |
| Porch corner routing | Helps the run step around compact corner details or posts while staying close to the wall. | Check post clearance, wall straps, downspout alignment, and discharge direction. |
| Window trim and casing bypass | Creates a small horizontal shift around trim that projects into the downspout path. | Measure trim depth and confirm the 2 in offset is sufficient before cutting. |
| Exterior fixture clearance | Routes around lights, boxes, small equipment, or surface-mounted obstacles. | Do not block access to electrical boxes, vents, shutoffs, or serviceable fixtures. |
| Repair or replacement work | Replaces a damaged, dented, mismatched, or field-built offset when the system uses 2x3 downspout. | Match size, offset, profile, color, crimp direction, and connection layout. |
How the Double B Offset Works
| Step | What Happens | Why It Matters |
|---|---|---|
| 1. Redirect | The upper bend moves the downspout path away from the obstacle. | This creates the horizontal clearance needed to bypass the obstruction. |
| 2. Clear | The center section carries the run past the obstruction. | Proper positioning keeps the obstacle in the clearance zone, not at the connection point. |
| 3. Return | The lower bend returns the downspout to a parallel path. | This keeps the vertical run cleaner and easier to strap to the wall. |
| 4. Secure | Sheet metal screws fasten the connections and the downspout is supported as needed. | A secure offset helps prevent separation, rattling, poor alignment, and storm movement. |
Choose the Right Offset Size
This Product: 2 in Offset
Best for minor clearance issues like small utility lines, trim projection, compact porch details, and tight exterior routing.
Larger Offset Fittings
Better when the obstacle projects farther from the wall and 2 in clearance would be too tight.
Individual Elbows and Straight Sections
Better for custom offsets where a pre-assembled 2 in Double B fitting does not match the needed route.
Key Benefits
| Benefit | Plain-English Value |
|---|---|
| 2 in horizontal offset | Clears minor obstacles without pushing the downspout far away from the wall. |
| Approx. 11 in total height | Makes it easier to plan the offset location and downspout cut points. |
| Double B configuration | Creates a pre-formed S-bend for cleaner obstacle bypass routing. |
| 2x3 rectangular fit | Works with standard residential 2x3 rectangular downspout systems. |
| Corrugated ribbed profile | Matches common downspout profiles and helps the fitting hold its shape. |
| .019 gauge aluminum | Provides practical rigidity while staying easy to handle during installation. |
| Factory-applied finish | Supports a finished appearance when matched to the gutter system. |
| Pre-assembled fitting | Saves time compared with building a small offset from separate elbows and short sections. |
| Repair-ready part | Useful for replacing dented, damaged, mismatched, or improvised offset fittings. |
| Cleaner exterior routing | Helps maintain a straight-looking wall run after clearing the obstacle. |
Product Specifications
| Specification | Details |
|---|---|
| Product Name | 2x3 Aluminum Double B Offset Downspout Elbow — 2 in Clearance |
| Product Type | Double B offset elbow / downspout S-bend / gutter offset / conductor offset / obstacle clearance fitting |
| Offset Distance | 2 in horizontal clearance |
| Total Height | Approximately 11 in |
| Configuration | Double B with two B-style bends |
| Profile Size | 2x3 in rectangular downspout profile |
| Actual Opening | 3-1/8 in x 2-1/4 in |
| Material | Aluminum |
| Gauge | .019 gauge aluminum |
| Profile Style | Corrugated / ribbed |
| Finish | Factory-applied painted finish |
| Downspout Compatibility | Standard 2x3 rectangular downspouts |
| Installation Method | Crimp connection with compatible sheet metal screws |
| Primary Gutter Uses | Utility line clearance, porch corner routing, window trim bypass, fixture clearance, repairs, and compact downspout offsets |
| Listed Weight | 3 lb |
| Listed SKU Options | White: GA44001; Musket Brown: GA44002 |
| Confirm Before Use | Obstacle depth, offset size, downspout profile, crimp direction, color, connection direction, fasteners, straps, and discharge path |
| Not Intended For | Round downspouts, 3x4 systems, obstacles requiring more than 2 in clearance, unsupported structural use, or forced connections |
| Expected Service Life | Varies by installation quality, weather exposure, physical damage, drainage load, fastener condition, and maintenance. |
Who Uses This Double B Offset Elbow?
Gutter Installers
For routing 2x3 downspouts around utility lines, trim, fixtures, porch details, and small exterior obstructions without building a custom offset in the field.
Repair and Service Crews
For replacing dented, damaged, mismatched, or improvised offsets where the downspout needs to bypass an obstruction and return to alignment.
Maintenance Teams and Capable DIY Buyers
For compact downspout rerouting when the size, offset distance, connection direction, and installation safety are confirmed before ordering.
Setup and Installation Guide
| Step | Action | Why It Matters |
|---|---|---|
| 1 | Confirm the system uses 2x3 rectangular downspout. | Wrong size fittings will not seat correctly. |
| 2 | Measure the obstacle projection from the wall or downspout path. | The 2 in offset must provide enough clearance without rubbing the obstacle. |
| 3 | Plan where the offset will sit in the vertical run. | Positioning controls appearance, support, and whether the obstacle lands in the clearance zone. |
| 4 | Confirm color or finish match. | Color match helps the repair or install look intentional. |
| 5 | Dry fit the offset before fastening. | Dry fitting confirms clearance, crimp direction, alignment, and final appearance. |
| 6 | Cut the downspout cleanly if inserting the offset into an existing run. | Clean cuts help the fitting seat correctly and reduce gaps. |
| 7 | Connect the upper downspout section to the offset. | Proper connection keeps the upper run aligned with the offset fitting. |
| 8 | Connect the lower downspout section and align the vertical run. | The lower run should return parallel instead of drifting away from the wall. |
| 9 | Fasten connections with compatible sheet metal screws and support with straps as needed. | Secure fastening and support reduce movement, rattling, and joint separation. |
| 10 | Test water flow and inspect the offset. | Testing catches poor fit, blocked flow, rubbing, leaks, or loose connections before the job is finished. |
Pro Tip
Put the obstacle through the middle of the S-bend clearance zone, not right at a connection. That gives the offset room to do its job and keeps the downspout from looking like it had a disagreement with the wall.
Frequently Asked Questions
| Question | Answer |
|---|---|
| What is a Double B offset downspout elbow? | It is a pre-assembled offset fitting that uses two B-style bends to move the downspout around an obstacle and return the run to a parallel path. |
| What does the 2 in offset mean? | The 2 in offset is the horizontal clearance created by the fitting. It is best for small obstructions like minor utility lines, trim, compact porch details, and light exterior projections. |
| Will this fit every downspout? | No. This offset elbow is for standard 2x3 rectangular downspout systems. It is not for round downspouts, 3x4 systems, or obstacles that need more than 2 in clearance. |
| How should the offset be secured? | Use compatible sheet metal screws at the connections and support the downspout run with straps or brackets as needed. |
| What is GutterAll's return policy for this product? | GutterAll offers a 30-day return window for unused standard products in original condition. Installed, scratched, dented, bent, altered, customer-damaged, special-order, color-mismatched, or incorrectly selected offset elbows may not be returnable unless defective. Confirm size, offset, color, and quantity before ordering. |
| What fulfillment options are available? | This compact offset fitting can ship when available through Shopify checkout. Local pickup and local delivery may also be available through GutterAll in Damascus, Oregon. Confirm current fulfillment options at checkout. |
Installation and Safety Notice
Downspout offset installation may involve ladder work, sharp metal edges, overhead handling, drilling, screws, and work around siding, trim, utility lines, fixtures, fascia, and roof edges. Use gloves, eye protection, ladder safety, and appropriate jobsite PPE.
Confirm obstacle clearance, downspout size, crimp direction, color, fastener type, and discharge path before fastening. Forced connections can damage the offset or create poor drainage alignment.
Do not use this offset for unsupported structural loads, incompatible downspout profiles, buried drainage connections, or systems where local code, project specifications, or drainage design require a different component.
Need Help Confirming the Offset Before Checkout?
The right offset depends on obstacle depth, downspout size, crimp direction, color, wall clearance, strap placement, and discharge path. Website chat is the fastest way to confirm fit before ordering.
Fastest Path
Start with website chat for offset size, color, downspout fit, pickup, local delivery, or shipping questions.
Complete the Setup
Pair with compatible 2x3 downspout, straps, screws, elbows, outlets, extensions, and matching color components as needed.
Avoid Fit Mistakes
Do not assume “close enough” works. Confirm the obstacle projection, 2 in offset, total height, and 2x3 fit before cutting.
Product Summary Box
The 2x3 Aluminum Double B Offset Downspout Elbow with 2 in clearance is a corrugated aluminum S-bend fitting for routing standard 2x3 rectangular downspouts around minor obstacles while returning the run to parallel alignment. It features a 2 in horizontal offset, approximately 11 in total height, Double B configuration, .019 gauge aluminum construction, corrugated ribbed profile, and factory-applied finish. Use it for utility line clearance, porch corners, window trim, exterior fixtures, compact wall routing, repairs, and replacements where the downspout size, obstacle clearance, connection direction, color, and discharge path are confirmed before installation.
