3 in Round Corrugated Downspout Elbow 2 in Offset

A Downspout Elbow Solves the Problem Straight Pipe Cannot

Downspout problems usually show up where the run needs to change direction: under the gutter outlet, around a soffit, past trim, along a wall, or at the bottom where water needs to move away from the foundation. A straight downspout section cannot solve those turns by itself, and forcing the fit can create crooked runs, loose joints, poor drainage direction, and extra repair work.

This 3 in round corrugated aluminum downspout elbow is built for that routing problem: it creates a controlled 2 inch offset so installers can connect compatible round downspout sections while guiding runoff around common exterior obstacles and toward the planned discharge path.

Built for Cleaner Direction Changes in Round Downspout Systems

Made for Gutter Runs That Need a Clean Offset, Not a Forced Fit

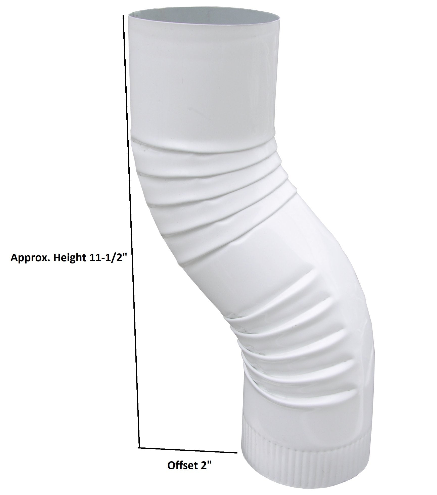

This listing is for a 3 inch round corrugated aluminum downspout elbow with a 2 inch offset. The uploaded product content identifies the elbow as 0.019 inch aluminum with corrugated / ribbed design, approx. 11-1/2 inch height, 2 inch offset, painted finish, and White, Black, and Musket Brown color options. The uploaded image shows a white round corrugated elbow with the height and 2 inch offset labeled. :contentReference[oaicite:2]{index=2}

For gutter installers, the value is predictable routing: aligning the downspout under the gutter outlet, clearing fascia or soffit conditions, connecting to a vertical round downspout run, and pointing the lower section toward the planned discharge direction.

Public product references support the core use case: 3 inch round corrugated aluminum downspout elbows are used to direct runoff from the gutter into the downspout, fit compatible 3 inch round aluminum downspouts, and can attach with screws or pop rivets. Industry references also describe corrugated round elbows as crimped to fit with other elbows and downspouts. :contentReference[oaicite:3]{index=3}

GutterAll in Damascus, OR supports contractors and homeowners with downspout elbow selection, round downspout compatibility, color matching, local pickup, local delivery, and nationwide shipping through Shopify checkout.

The Real Pain Point Is a Downspout That Does Not Line Up

A downspout run can fail visually and functionally when the elbow is the wrong diameter, wrong offset, wrong direction, or wrong profile. Installers may end up twisting parts, creating gaps, over-crimping, forcing screws into weak spots, or aiming runoff back toward the wall instead of away from the structure.

This elbow helps solve the fit-and-routing problem by giving the installer a defined 3 inch round connection with a 2 inch offset. It is especially useful where the downspout needs to move from the gutter outlet to the wall plane, step around a small architectural feature, or redirect the lower discharge section.

The best result comes from confirming downspout diameter, profile, elbow direction, crimped-end fit, outlet type, fastener method, wall clearance, and final water discharge path before installation.

Where This 2 in Offset Elbow Creates the Most Value

How the 3 in Round Offset Elbow Works

A downspout elbow changes the direction of water flow between the gutter outlet, downspout sections, wall plane, and lower discharge path. The crimped or fitted end slides into a compatible round component, then screws or pop rivets can be used to secure the connection when the fit is correct.

The 2 inch offset lets the run shift slightly without building an awkward connection from straight pipe. That matters most under outlets, around soffits, and at the lower end where water needs to move away from the foundation.

Choose the Elbow Based on the Downspout Run, Not Guesswork

Key Features

Quick Decision Summary

Choose the 3 in Round Corrugated Aluminum Downspout Elbow with 2 in Offset when a compatible round downspout run needs a controlled direction change under the gutter outlet, around a soffit, along the wall, or at the bottom discharge point. Confirm the 3 inch round profile, offset, elbow direction, crimped end fit, fasteners, and discharge path before ordering.

Benefits Crews Notice Fast

• Creates a controlled direction change in compatible 3 inch round downspout systems
• 2 inch offset helps route around small soffit, fascia, and wall-plane conditions
• Approx. 11-1/2 inch height gives installers a useful fit reference
• Corrugated profile matches round corrugated downspout components
• 0.019 inch aluminum detail supports material comparison and replacement planning
• Useful at the gutter outlet, mid-run offset, or lower discharge point
• Helps avoid forcing straight downspout sections into offset conditions
• Supports cleaner wall alignment when the offset matches the site condition
• Can help direct runoff toward extensions, splash blocks, or drain connections when installed correctly
• White, Black, and Musket Brown options support common exterior color matching
• Works for new installs, repairs, replacements, and drainage rerouting projects
• Useful for gutter installers, cleaning contractors, roofers, property managers, and capable DIY homeowners
• Pairs with compatible 3 inch round downspouts, outlets, straps, screws, extensions, and splash blocks
• Helps restore proper routing when an old elbow is dented, loose, missing, or mismatched
• Supported by GutterAll fit and compatibility guidance through website chat

Product Specifications

Who Uses This 3 in Round Corrugated Offset Elbow?

Setup and Installation Guide

1. Confirm the existing system uses a compatible 3 inch round corrugated downspout profile.
2. Confirm the 2 inch offset and approx. 11-1/2 inch height match the outlet, soffit, wall, or discharge condition.
3. Check whether the elbow direction and crimped end orientation match the planned flow path.
4. Dry-fit the elbow with the outlet, upper downspout, lower downspout, or extension before fastening.
5. Adjust the crimped end only as needed using a proper crimper or careful hand-tool adjustment.
6. Seat the connection fully without crushing or deforming the corrugated profile.
7. Secure the joint with compatible screws or pop rivets where the system requires fastening.
8. Attach the connected downspout section with proper straps or supports so the elbow is not carrying the run alone.
9. Confirm the lower outlet points water away from the structure, walkway, landscaping, and neighboring property.
10. Test with water and inspect for leaks, loose joints, poor slope, rubbing, rattling, or misalignment.

Pro Tip

Plan the elbow from the water exit point backward. A clean upper connection matters, but the finished run only works if the lower discharge sends runoff away from the foundation, walkway, and areas where water can pool or freeze.

Frequently Asked Questions

Installation and Jobsite Safety Notice

Use ladder safety, gloves, eye protection, and proper fall-prevention practices when installing downspout elbows at height. Cut aluminum edges, screws, pop rivets, crimped ends, and downspout parts can be sharp.

Do not force the wrong diameter, profile, offset, elbow direction, or fastener method into the system. A poor fit can leak, separate, rattle, restrict drainage, dent the elbow, or aim water toward the structure.

Confirm that the completed downspout path discharges water away from the structure, walkways, neighboring property, and areas where concentrated runoff may create erosion or ice hazards.

Need Help Matching the Elbow to the Downspout Run?

The right elbow depends on diameter, profile, offset, color, outlet type, wall clearance, crimped end fit, fasteners, and discharge direction. Website chat is the fastest way to confirm the setup before checkout.

Product Summary Box

The 3 in Round Corrugated Aluminum Downspout Elbow with 2 in Offset helps route runoff through compatible 3 inch round downspout systems where the run needs a clean direction change. With approx. 11-1/2 inch height, 0.019 inch painted aluminum, and White, Black, and Musket Brown options listed in the uploaded details, it supports outlet connections, soffit offsets, repairs, replacements, and bottom discharge routing.
