3x4 Aluminum 4 Inch Double A Downspout Offset

When the Eave Pushes the Downspout Out of Line, the Fix Should Still Look Intentional

Deep soffits, eave overhangs, brick ledges, decorative trim, and wall projections can push a downspout away from the clean vertical path. Trying to solve that with separate elbows, short connector pieces, extra cuts, and extra fasteners can make the run look improvised before the job is even finished.

The 3x4 Aluminum 4 Inch Double A Downspout Offset is built for that routing problem: it shifts the downspout path 4 inches horizontally with an S-curve fitting, helping installers clear common eave and wall obstacles while keeping the run cleaner and easier to support.

Built to Clear Eaves, Soffits, and Wall Projections Without a Field-Built Offset

Made for Gutter Crews Who Need the Downspout to Clear the Eave and Still Look Planned

The 3x4 Aluminum 4 Inch Double A Downspout Offset is a formed gutter drainage fitting used to shift a compatible 3x4 rectangular downspout around an obstacle. The uploaded listing identifies the product as a 3x4 Double A offset downspout elbow with 4 inch horizontal offset, approximate 13 inch height, .019 aluminum, corrugated/ribbed profile, baked enamel finish, 4-1/8 in x 2-7/8 in surface dimensions, standard colors of 30 Deg. White, Musket Brown, and Black, custom order availability, and SKU GA-OFF-3X4-4IN-DAA.

For gutter installers, the value is layout control. Instead of field-building an offset from multiple elbows and short cuts, this fitting gives the crew a defined 4 inch displacement that can be measured, dry-fit, aligned, fastened, bracketed, and tested as part of the downspout run.

For gutter cleaning contractors, repair crews, property managers, and DIY homeowners, this offset is useful when an existing downspout runs into a soffit depth, brick ledge, decorative band, window header, or other projection that needs a cleaner bypass.

GutterAll in Damascus, OR supports contractors and homeowners with offset sizing, 3x4 downspout matching, color selection, custom order questions, in-store pickup, local delivery, and nationwide shipping. Website chat is the fastest way to confirm whether this 4 inch Double A offset gives enough clearance before checkout.

The Real Pain Point Is the Messy Workaround

A soffit or ledge conflict often starts as a small layout issue and turns into a bulky field-built offset: one elbow, another elbow, a short connector, extra screws, more cuts, more alignment checks, and more visible joints. That can slow the job down and make the finished downspout look like it was adapted after the fact.

This offset solves that practical routing problem by combining the direction change into one formed S-curve fitting. The 4 inch displacement helps bypass shallow projections, while the approximate 13 inch height keeps the transition contained within the downspout run.

The best result comes from measuring the obstacle projection, confirming the 3x4 profile, checking available vertical space, selecting the correct color, supporting the run with brackets, and testing the drainage path before the job is finished.

Where This Offset Creates the Most Value

How the Double A Offset Works

A Double A offset uses two same-direction offset bends to move the downspout away from the wall and return it toward the vertical run. This creates the S-curve shape shown in the product image and gives the installer a formed offset instead of separate elbows connected with short pieces.

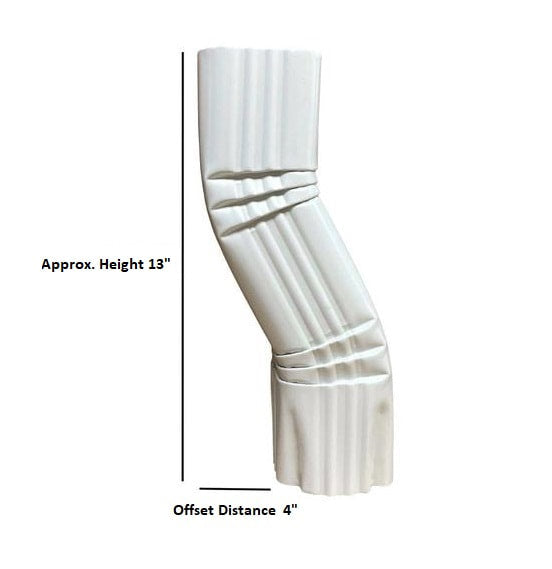

The uploaded image shows the key layout: approximately 13 inches of height with a 4 inch offset distance. The installer should measure the obstacle depth, dry-fit the offset, confirm crimp direction, secure each joint with compatible sheet metal screws, and support the downspout above and below the offset with brackets or straps.

Choose the Offset Based on the Obstacle

Key Features

Quick Decision Summary

Choose the 3x4 Aluminum 4 Inch Double A Downspout Offset when a compatible 3x4 downspout needs a measured 4 inch horizontal shift around an eave, soffit, ledge, or wall projection. Confirm obstacle projection, profile size, vertical space, color, crimp direction, fasteners, brackets, and drainage path before installation.

Benefits Crews Notice Fast

• Moves compatible 3x4 downspouts around measured eaves, soffits, ledges, and wall projections
• 4 inch offset helps clear shallow exterior obstacles when measured clearance matches
• Double A design uses two same-direction bends in one S-curve fitting
• Reduces the need for multiple elbows and short connector pieces
• Corrugated profile matches compatible 3x4 downspout appearance
• Approximate 13 inch height keeps the offset transition contained
• Useful for new installs, repairs, replacements, and rerouting work
• Helps avoid an improvised downspout run that looks patched together
• Standard colors cover common exterior gutter finishes
• Custom options support specialty colors and nonstandard offset needs
• Supports cleaner downspout alignment above and below the obstacle
• Works for residential and commercial projects when the 3x4 profile matches
• Can reduce extra field cutting compared with building a custom elbow stack
• Helps the finished run look intentional from the ground
• Supported by GutterAll sizing, color, and custom-order guidance through website chat

Product Specifications

Who Uses This 3x4 Double A Offset?

Setup and Installation Guide

1. Confirm the downspout system uses a compatible 3x4 rectangular profile.
2. Measure the eave, soffit, ledge, or wall projection and confirm a 4 inch offset provides enough clearance.
3. Confirm there is enough vertical space for the approximate 13 inch offset height.
4. Select the color that best matches the downspout, gutter, trim, siding, or project specification.
5. Dry-fit the offset and confirm crimp direction, alignment, and drainage path before fastening.
6. Cut the existing downspout section only after confirming placement and clearance.
7. Connect the upper and lower downspout sections to the offset using compatible crimped connections.
8. Secure the joints with compatible sheet metal screws or the approved fastening method for the system.
9. Add brackets or straps above and below the offset to support the shifted run.
10. Test with water and inspect for leaks, movement, poor alignment, blocked flow, or contact with the obstacle.

Pro Tip

Measure the obstacle at its deepest point before choosing the offset. A clean color match will not fix a clearance problem if the projection is deeper than 4 inches or if the downspout run does not have enough vertical space for the fitting.

Frequently Asked Questions

Installation and Jobsite Safety Notice

Use ladder safety, gloves, eye protection, and proper fall-prevention practices when working at gutter height. Cut downspout edges, screws, rivets, brackets, and metal fittings can be sharp.

Do not force the wrong profile, offset distance, crimp direction, or angle into the system. A poor fit can separate, leak, restrict drainage, deform the fitting, or create a weak connection during heavy runoff.

Confirm that the completed downspout path clears the obstacle and discharges water away from the structure, walkways, neighboring property, and areas where concentrated runoff may create erosion or ice hazards.

Need Help Confirming the Offset Before Cutting?

The right offset depends on the obstacle depth, 3x4 profile, vertical space, crimp direction, color, bracket support, fasteners, and drainage path. Website chat is the fastest way to confirm the correct setup before checkout.

Product Summary Box

The 3x4 Aluminum 4 Inch Double A Downspout Offset is a corrugated S-curve fitting for compatible 3x4 rectangular downspout systems. It helps installers route the downspout around measured eaves, soffits, ledges, and wall projections with one formed offset instead of building a bulky multi-elbow workaround.
