4x5 22.5 Degree Type A Downspout Elbow | Aluminum

A Shallow Offset Should Not Turn Into a Forced Downspout Run

Some gutter layouts do not need a sharp 45-degree or 75-degree turn. They need a controlled, shallow adjustment that helps the downspout line up cleanly without twisting the fitting, stressing the connection, or making the run look patched together.

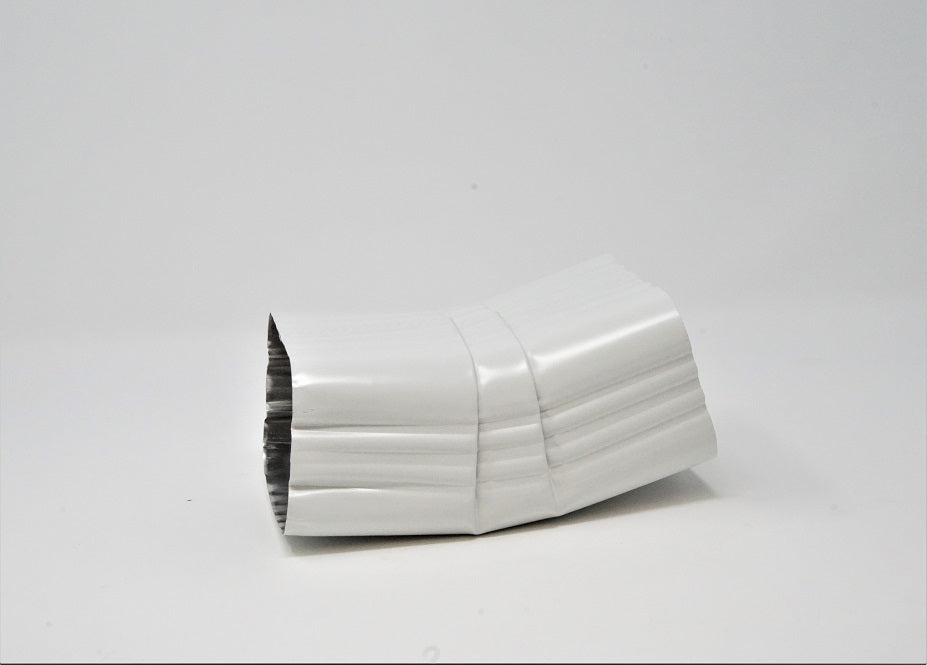

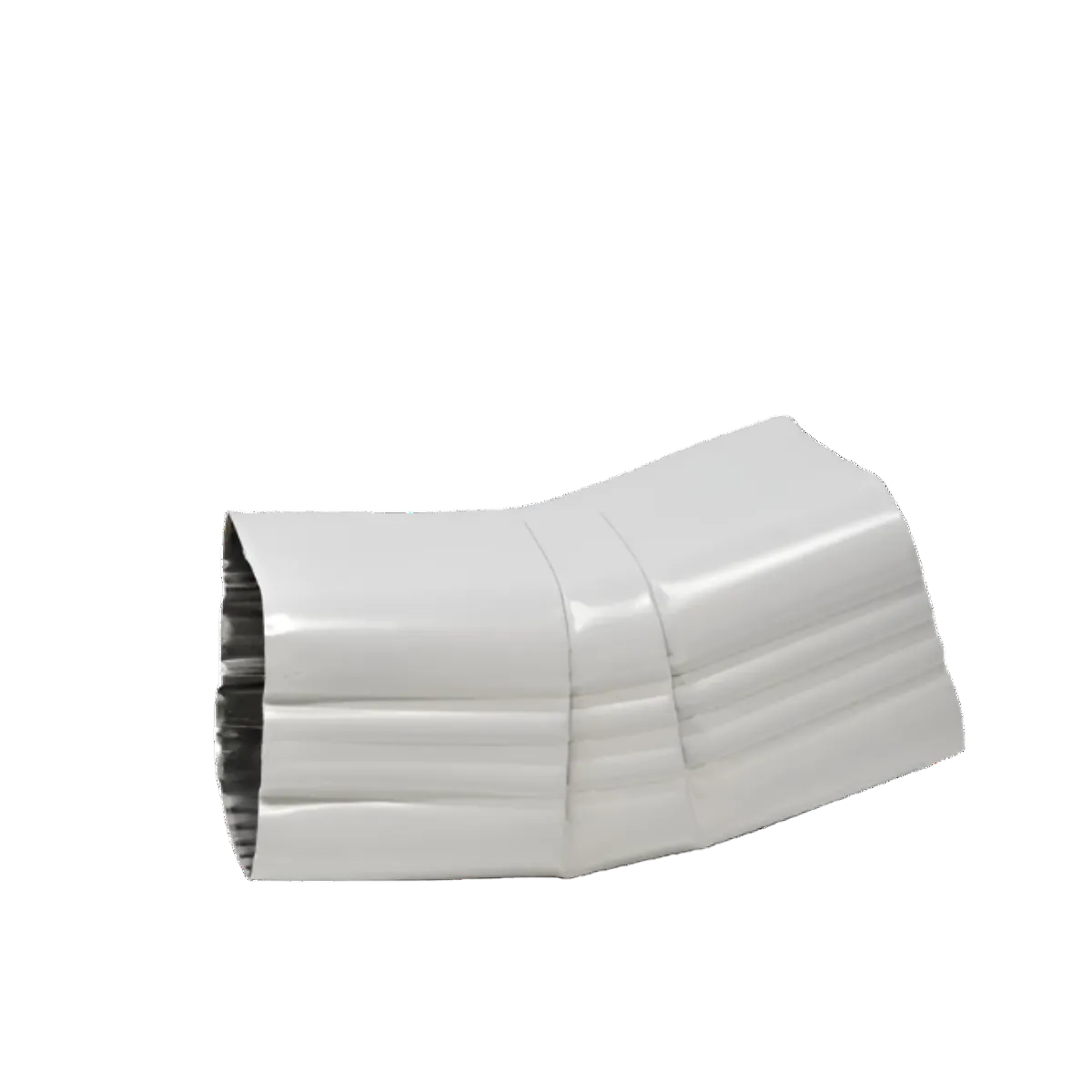

The 4x5 Aluminum 22.5 Degree Type A Downspout Elbow is built for that exact fit problem: it gives installers a large-profile corrugated elbow with a gentle 22.5-degree bend, Type A front-crimp orientation, .019 gauge aluminum construction, and 31 factory colors for cleaner large-format gutter transitions.

Built for Gentle Direction Changes in Larger Downspout Systems

Made for Gutter Crews Who Need a Subtle Offset to Look Intentional

The 4x5 Aluminum 22.5 Degree Type A Downspout Elbow is a corrugated gutter fitting used to change direction in compatible 4x5 downspout systems. The uploaded listing identifies the product as a 22.5-degree Style A elbow with .019 gauge aluminum, corrugated ribbed construction, baked enamel finish, 31 factory colors, actual dimensions of 5-1/4 inches by 3-13/16 inches, contractor pack options, and SKU GA-ELB-4X5-22.5-A.

For gutter installers, the value is clean alignment without overcorrecting the downspout path. The 22.5-degree bend helps make a smaller direction change, the 4x5 profile matches compatible larger systems, and the Type A front-crimp configuration keeps the fitting matched to systems designed for that orientation.

For commercial contractors, large residential installers, gutter cleaning contractors, repair crews, property managers, and DIY homeowners, this elbow is useful when replacing a damaged fitting, building a shallow offset, or fine-tuning a downspout run that needs a cleaner transition without a sharper angle.

GutterAll in Damascus, OR supports contractors and homeowners with elbow type selection, 4x5 size matching, angle selection, color selection, in-store pickup, local delivery, and nationwide shipping. Website chat is the fastest way to confirm Type A orientation, color, and fit before ordering.

The Real Pain Point Is Overcorrecting the Offset

Using too sharp of an elbow where only a minor adjustment is needed can make the downspout run look awkward, push the vertical section out of line, and create extra fitting work. Using the wrong Type A or Type B orientation can make the connection fight the system even when the size is right.

This elbow solves that practical installation problem by combining the large 4x5 profile with a gentler 22.5-degree bend and Type A front-crimp setup. It gives the installer a defined fitting for subtle direction changes instead of relying on a workaround that can create rework later.

The best result comes from confirming the 4x5 profile, Type A orientation, outlet location, offset distance, angle requirement, color, fastening method, and final discharge direction before installation.

Where This Elbow Creates the Most Value

How the 22.5 Degree Type A Elbow Works

A Type A downspout elbow is used where the system needs the forward/back routing style associated with A-style elbows. The 22.5-degree bend helps create a subtle adjustment between the gutter outlet and downspout run while maintaining a gentler direction change than sharper elbow options.

The installer should dry-fit the elbow, confirm the crimp direction, check the offset, and secure the joint with compatible sheet metal screws, rivets, or the approved fastening method for the system. Public elbow guides confirm that A-style and B-style elbows turn the downspout in different planes, which is why orientation should be confirmed before ordering.

Choose the Elbow Based on the System

Key Features

Quick Decision Summary

Choose the 4x5 Aluminum 22.5 Degree Type A Downspout Elbow when the system uses compatible 4x5 downspout, needs a gentle offset, and requires Type A front-crimp orientation. Confirm size, angle, crimp style, color, and fastening method before installation.

Benefits Crews Notice Fast

• Fits compatible 4x5 aluminum downspout systems
• 22.5-degree bend supports gentle offset routing
• Type A front-crimp orientation helps match the correct system connection
• Corrugated ribs help the fitting hold its formed shape
• .019 gauge aluminum gives installers a defined material spec
• Works for new installs, replacements, service repairs, and routing corrections
• Useful for large residential and commercial gutter systems
• Helps avoid forcing a sharper elbow into a shallow offset
• Helps avoid ordering Type B when Type A is needed
• Supports cleaner outlet-to-wall alignment
• 31 factory colors support exterior matching
• Contractor pack options support repeated jobs and truck stock
• Useful around shallow fascia offsets and minor route corrections
• Pairs with compatible 4x5 downspouts and fittings
• Supported by GutterAll sizing and orientation guidance through website chat

Product Specifications

Who Uses This 4x5 Type A 22.5 Degree Elbow?

Setup and Installation Guide

1. Confirm the downspout system uses a compatible 4x5 rectangular profile.
2. Verify that the job requires a Type A / Style A front-crimp elbow rather than a Type B elbow.
3. Confirm the 22.5-degree bend is the correct angle for the shallow outlet-to-wall offset.
4. Select the color or material option that best matches the gutter, downspout, trim, siding, or project specification.
5. Dry-fit the elbow at the gutter outlet or downspout connection before fastening.
6. Check that water will flow in the correct direction and that the elbow does not force the run out of alignment.
7. Secure the joint with compatible sheet metal screws, rivets, or the approved fastening method for the system.
8. Support the connected downspout run with properly spaced brackets or straps.
9. Test with water to confirm direction, joint fit, and drainage path.
10. Inspect periodically for loose fasteners, impact damage, debris blockage, separation, or coating damage.

Pro Tip

Choose the angle before choosing the color. A color-matched elbow still causes problems if the job really needs a sharper 45-degree or 75-degree bend, or if the system requires Type B instead of Type A.

Frequently Asked Questions

Installation and Jobsite Safety Notice

Use ladder safety, gloves, eye protection, and proper fall-prevention practices when working at gutter height. Aluminum edges, drilled holes, screws, rivets, and cut downspout sections can be sharp.

Do not force the wrong size, angle, or elbow style into the system. A poor fit can separate, leak, restrict drainage, deform the elbow, or create a weak connection during heavy runoff.

Confirm that the completed downspout path discharges water away from the structure, walkways, neighboring property, and areas where concentrated runoff may create erosion or ice hazards.

Need Help Confirming Type A, Angle, or Color?

The right elbow depends on the 4x5 profile, Type A orientation, bend angle, outlet location, downspout routing, and exterior color. Website chat is the fastest way to confirm the correct fitting before checkout.

Product Summary Box

The 4x5 Aluminum 22.5 Degree Type A Downspout Elbow is a corrugated aluminum gutter fitting for compatible large-profile downspout systems. It helps installers create gentler outlet-to-wall offsets, match Type A front-crimp orientation, and finish the downspout run with a color-matched aluminum component.
