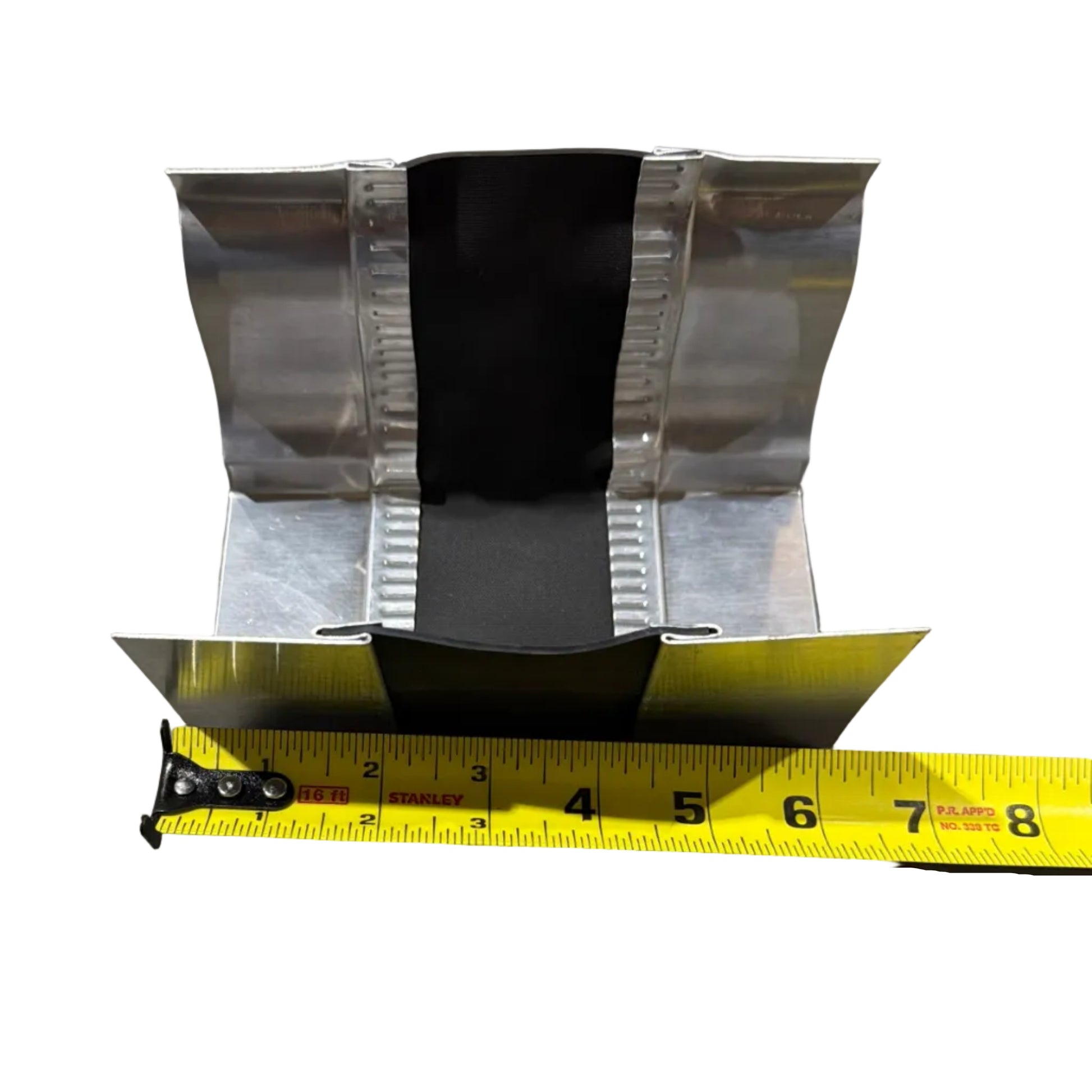

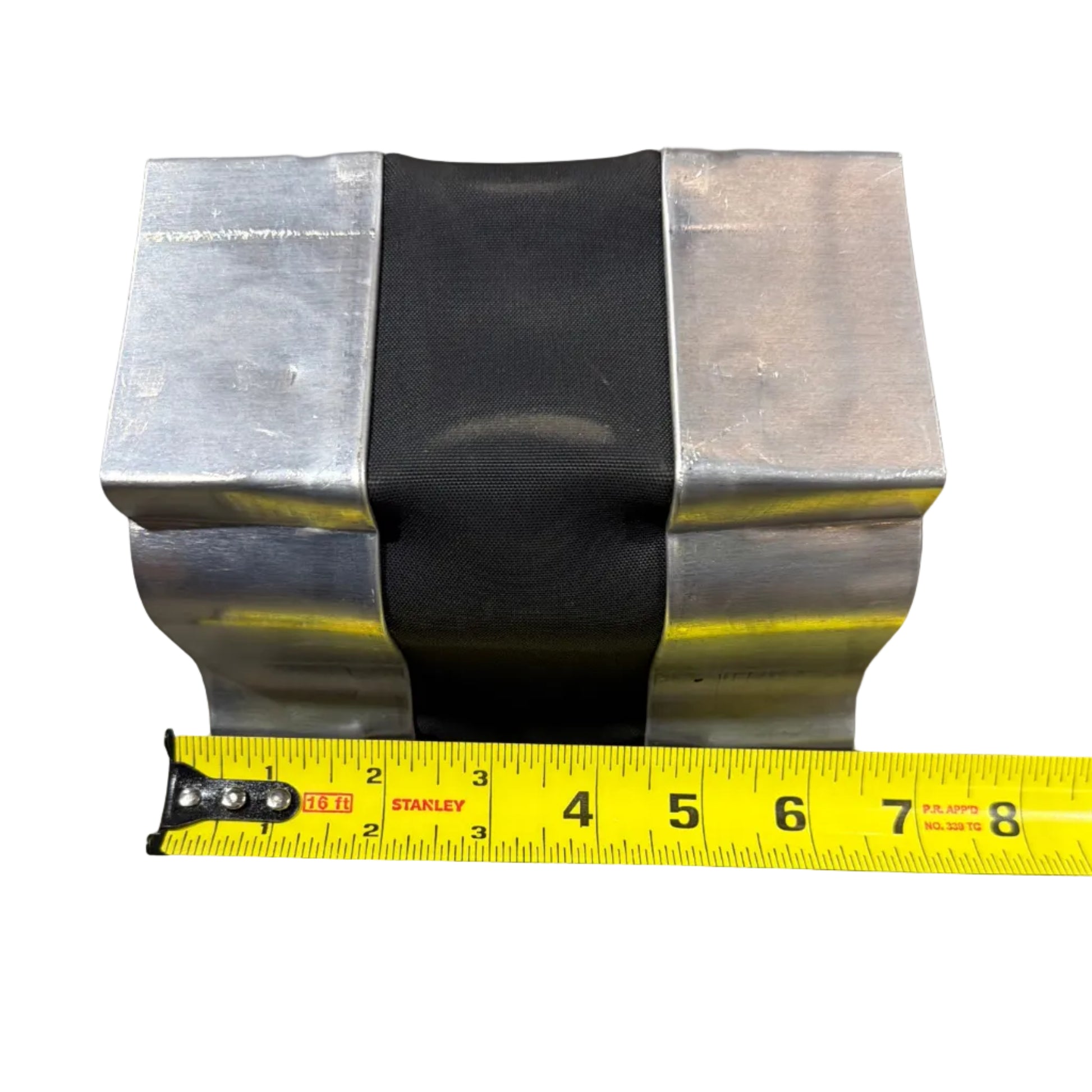

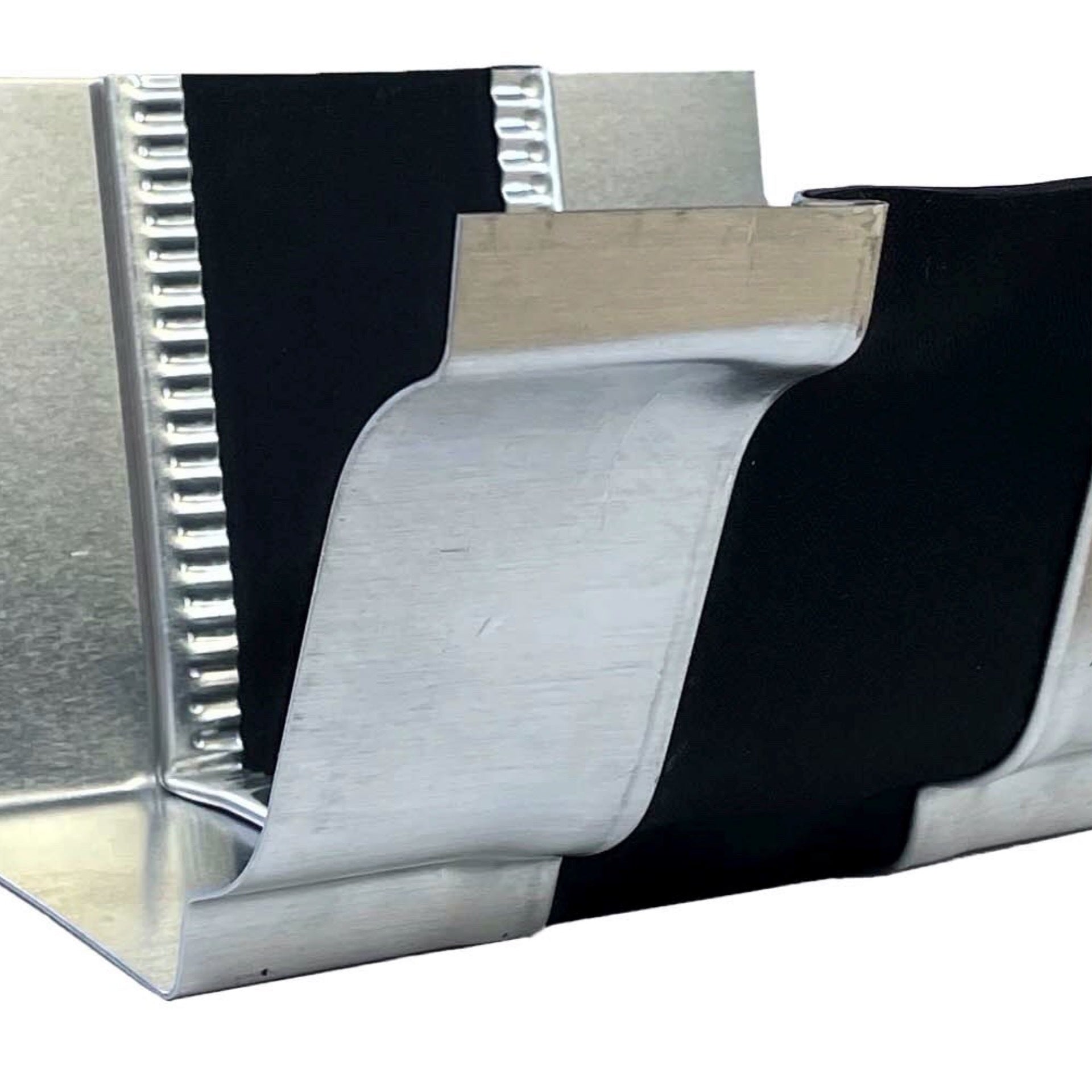

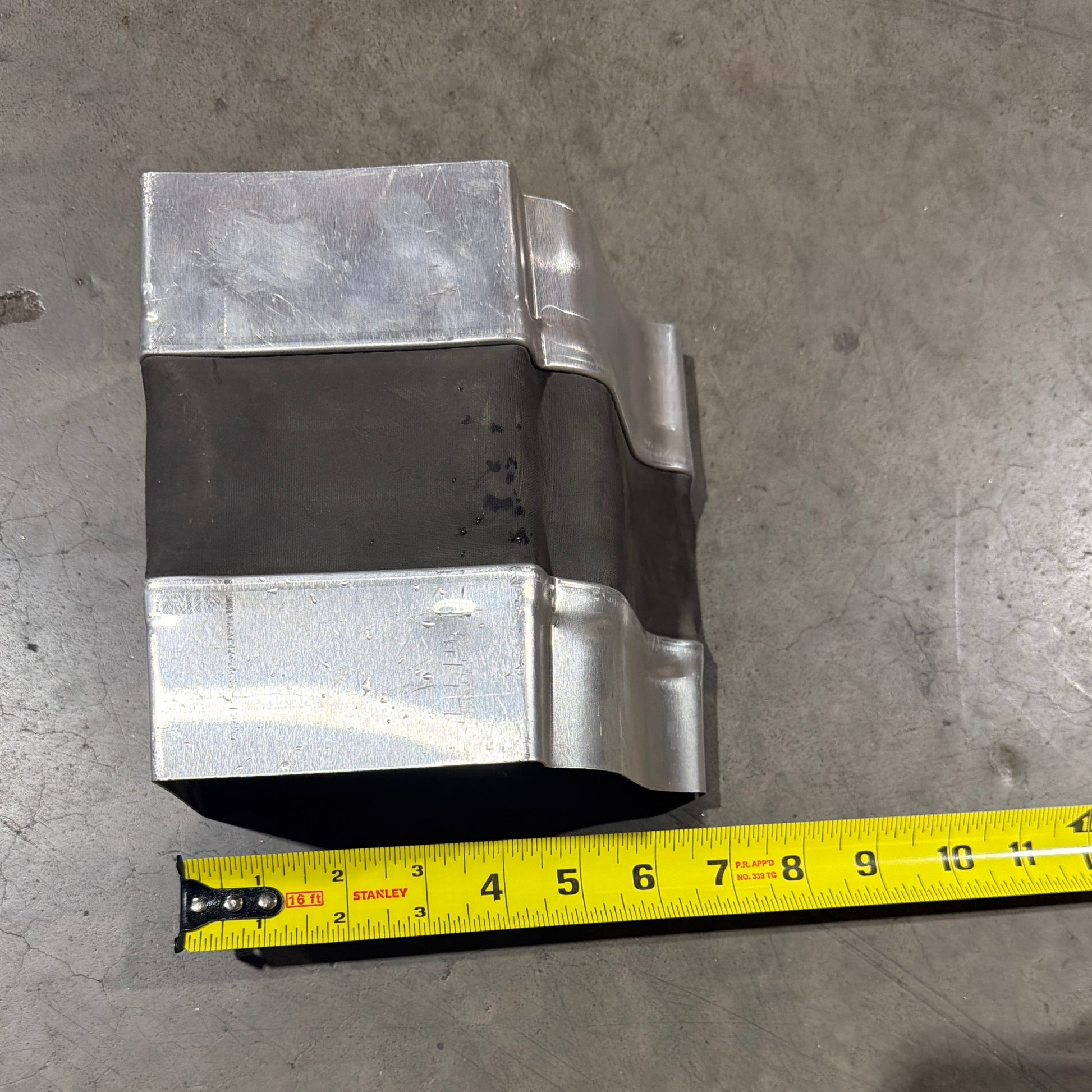

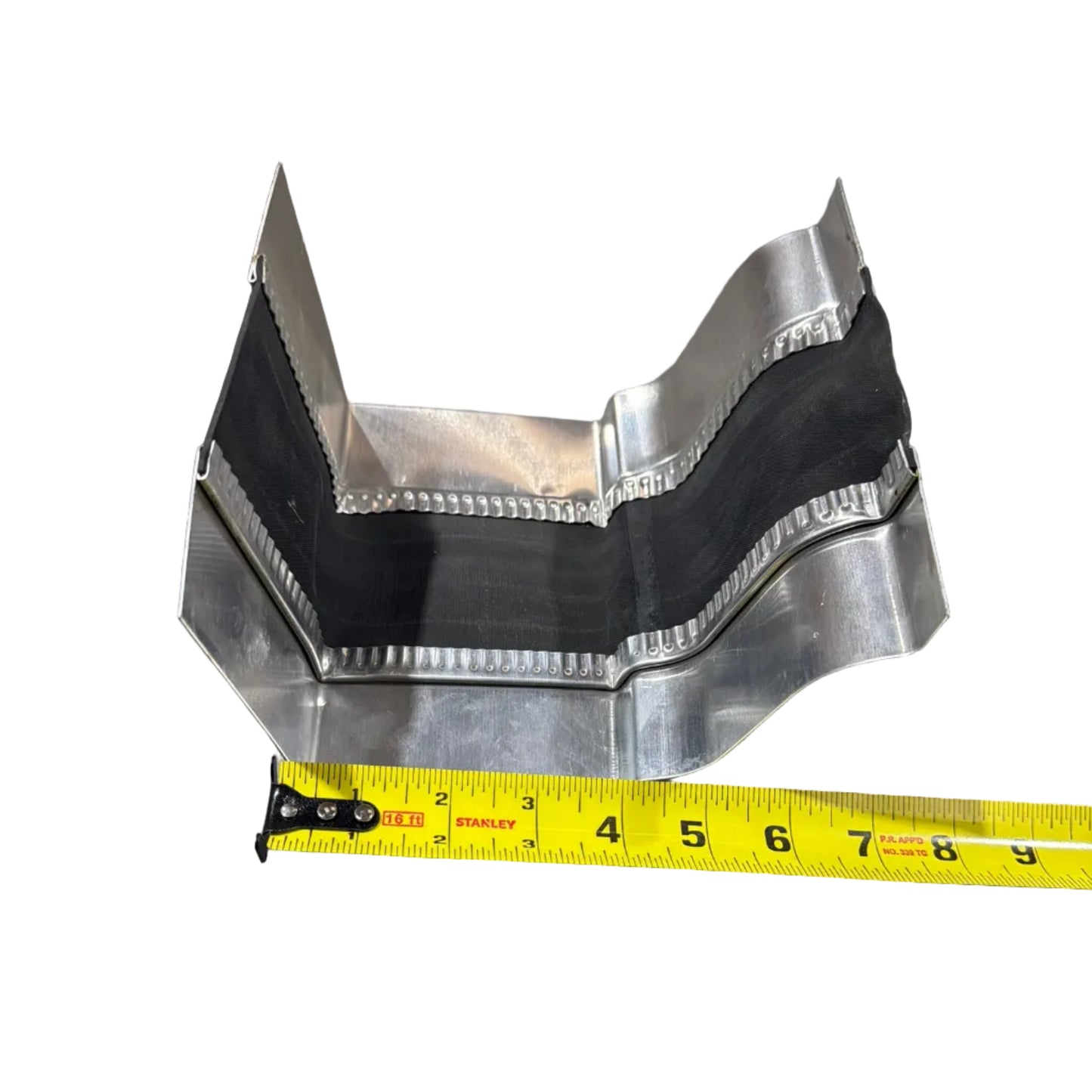

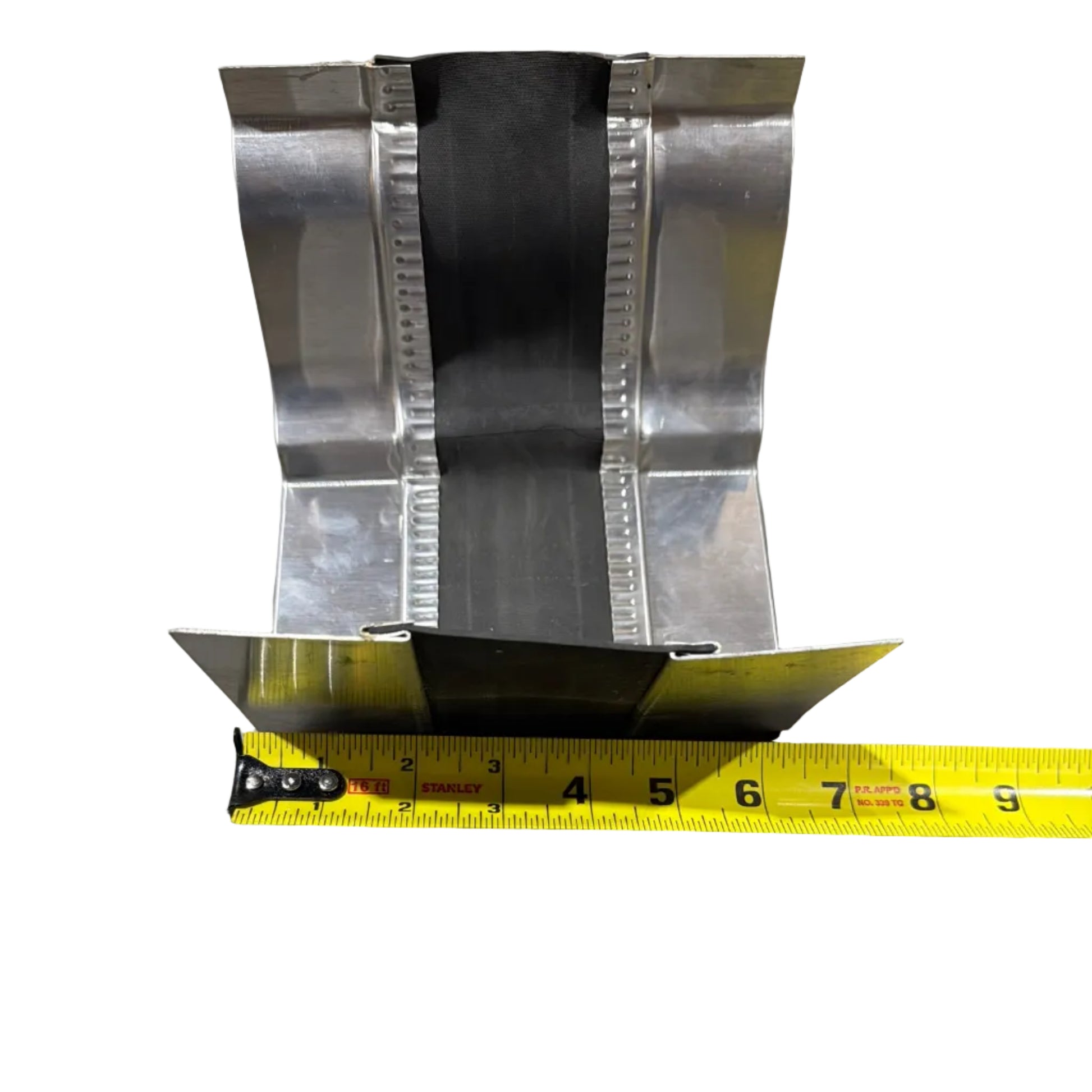

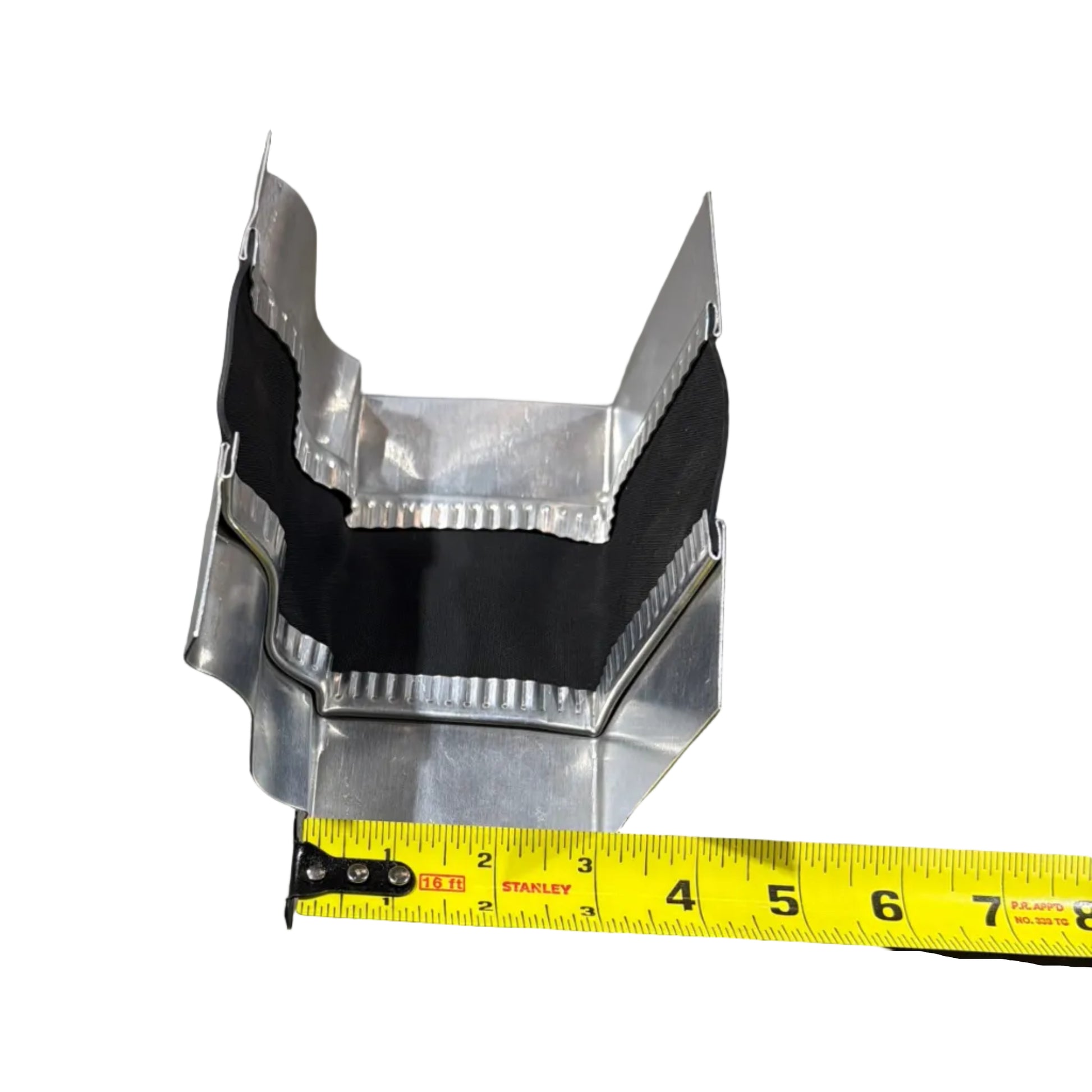

Gutter Expansion Joint — Aluminum with EPDM Flexible Insert
5" and 6" Sizes | Mill-Finish Aluminum | EPDM Rubber Insert | Prevents Buckling and Warping on Long Runs
Thermal Protection That Prevents Costly Gutter Damage on Long Runs
Aluminum gutters expand and contract with temperature changes — up to 1/4 inch per 40 feet of length. On runs longer than 40-50 feet, this thermal movement causes buckling, warping, and expansion tears that compromise the entire gutter system. The gutter expansion joint — also known as a thermal expansion connector, gutter slip joint, expansion coupling, contraction joint, and temperature compensator — absorbs this movement with a flexible EPDM rubber insert sandwiched between two mill-finish aluminum sections. Each gutter section moves independently while the joint maintains watertight integrity, eliminating thermal stress damage before it starts.
5" Standard Residential (SKU: Z706609) | 6" Commercial/Heavy-Duty (SKU: 6142849) | Prevents Buckling and Warping
Key Benefits at a Glance
Absorbs expansion and contraction movement — eliminates buckling, warping, and expansion tears on long gutter runs.
Durable rubber center allows independent movement while maintaining continuous watertight seal and water flow.
Matches standard aluminum gutter material — corrosion resistant, same thermal expansion rate, professional appearance.
Proactive installation prevents thermal damage complaints — protects contractor reputation on long-run installations.
Essential Component for Professional Seamless Gutter Installations
Every experienced gutter installer knows the problem: a perfectly installed seamless gutter system that buckles, warps, or tears at seams after the first summer heat or winter freeze. The cause is always the same — thermal expansion and contraction on runs longer than 40-50 feet without accommodation for movement. The gutter expansion joint — also referred to as a thermal slip connector, gutter movement joint, expansion splice, and thermal relief joint — is the professional solution. The flexible EPDM rubber insert creates a buffer zone between two aluminum gutter sections, allowing each section to expand and contract independently while maintaining continuous water flow and watertight integrity.
The two-piece aluminum construction splices directly into seamless gutter runs at high points along the system. The aluminum end sections overlap the cut gutter ends and are secured with fasteners and sealant. The EPDM rubber center absorbs thermal movement in both directions — expansion during heat and contraction during cold — while maintaining a continuous channel for water flow. Unlike rigid splice connectors that transfer stress to adjacent sections, expansion joints isolate thermal movement at designed locations, protecting the entire system from stress accumulation.
Available in 5-inch and 6-inch sizes to match standard K-style residential and commercial gutter systems, expansion joints are required equipment for professional installations on runs exceeding 40-50 feet. The 5-inch size (SKU: Z706609) fits standard residential K-style gutters — the most common application. The 6-inch size (SKU: 6142849) fits commercial and heavy-duty residential systems requiring larger capacity. GutterAll supplies professional gutter expansion joints and related thermal protection components to contractors from our Damascus, Oregon location.
| Size | SKU | Application |
|---|---|---|
| 5" Expansion Joint | Z706609 | Standard residential 5" K-style seamless gutters |
| 6" Expansion Joint | 6142849 | Commercial and heavy-duty 6" K-style gutter systems |
Protect long gutter runs from thermal damage — expansion joints are essential equipment.
Start a chat for product questions or email sales@gutterall.com for contractor pricing.
Why Gutter Installation Contractors Specify Expansion Joints
Thermal damage callbacks destroy contractor profitability and reputation. A homeowner calls six months after installation complaining about buckled gutters, separated seams, or water overflow from warped sections — all caused by thermal expansion on runs the installer failed to protect. The expansion joint eliminates this risk entirely. For contractors who install long gutter runs, expansion joints are not optional accessories — they are required professional practice. The cost of an expansion joint is minimal compared to the cost of returning to repair thermal damage, replace warped sections, or explain to a customer why their new gutters failed. Professional contractors include expansion joints in every quote for runs exceeding 40-50 feet, protecting both the installation and their reputation.
Gutter Installer Applications — Where Expansion Joints Are Required
Gutter expansion joints address thermal stress in five primary scenarios where standard seamless gutters are vulnerable to damage:
| Application | The Challenge | Why It Helps |
|---|---|---|
| Long Residential Runs | Runs over 40-50 feet accumulate thermal stress causing buckling and warping | Expansion joint absorbs movement — each section expands/contracts independently |
| Commercial Buildings | Extended rooflines require multiple expansion points across 100+ foot runs | Multiple joints installed every 40-50 feet protect entire commercial system |
| Full Sun Exposure | South-facing gutters experience maximum thermal cycling and expansion | EPDM insert handles extreme temperature swings from sub-zero to 120F+ |
| Retrofit Repairs | Existing gutters with thermal damage need stress relief to prevent recurrence | Installing expansion joint at damage location prevents future stress buildup |
| Multi-Story Buildings | Difficult access makes future repairs expensive — must get it right first time | Proactive expansion joint installation eliminates costly callback repairs |
Technical Overview — Understanding Expansion Joint Design
EPDM Rubber Flexible Insert
The center section is manufactured from EPDM (Ethylene Propylene Diene Monomer) rubber — the same material used in automotive weatherstripping and roofing membranes. EPDM maintains flexibility from -40F to 250F, handles UV exposure without degradation, and provides decades of reliable service. The curved wave shape visible in the insert allows expansion and contraction in both directions while maintaining continuous water flow through the gutter channel. Unlike rigid connectors that transfer stress to adjacent sections, the EPDM insert absorbs movement locally.
Mill-Finish Aluminum End Sections
The aluminum end sections are manufactured from the same mill-finish aluminum used in seamless gutter systems. This ensures material compatibility, matching thermal expansion rates, and consistent corrosion resistance. The sections are designed to overlap cut gutter ends, creating a secure splice when fastened with screws or rivets and sealed with gutter sealant. The serrated/corrugated edge profile provides multiple fastening points and distributes load across the connection.
Thermal Movement Accommodation
Aluminum expands approximately 1/4 inch per 40 feet of length across typical seasonal temperature ranges. On a 100-foot gutter run, this translates to over 1/2 inch of movement that must be accommodated. Without expansion joints, this movement creates compressive stress in summer (causing buckling) and tensile stress in winter (causing separation and tears). The expansion joint isolates thermal movement, allowing each gutter section to expand and contract freely while maintaining watertight connections throughout the system.
High-Point Installation Requirement
Expansion joints must be installed at high points along the gutter run — never at low points or near downspouts. This positioning ensures water flows away from the joint toward downspouts rather than pooling at or flowing through the joint. Water flowing away from the joint minimizes pressure on the EPDM seal, extends joint life, and prevents debris accumulation at the expansion point. Proper high-point placement is critical for long-term performance.
Size Selection — Choosing the Right Expansion Joint
5" Expansion Joint — SKU: Z706609
Standard residential size. Fits 5" K-style seamless gutters — the most common residential gutter profile. Appropriate for single-family homes, townhouses, and light commercial applications using 5" gutter systems.
Best for: Standard residential installations, 5" K-style systems, most single-family homes
6" Expansion Joint — SKU: 6142849
Commercial and heavy-duty size. Fits 6" K-style gutter systems used in commercial buildings and large residential applications requiring increased water handling capacity.
Best for: Commercial buildings, large residential, high-capacity systems, 6" K-style gutters
Professional-grade thermal protection for seamless gutter systems.
Start a chat now or email sales@gutterall.com for contractor pricing.
Key Features and Gutter Installer Benefits
| Feature | Technical Detail | Gutter Installer Benefit |
|---|---|---|
| EPDM Flexible Insert | Rubber center absorbs expansion/contraction movement | Prevents buckling and warping — eliminates thermal damage callbacks |
| Mill-Finish Aluminum | Matches standard seamless gutter material | Compatible expansion rate — professional appearance, corrosion resistant |
| Two-Size Availability | 5" residential and 6" commercial sizes | Covers most K-style applications — residential through commercial |
| Temperature Range | EPDM rated -40F to 250F | Handles Pacific Northwest extremes — reliable through all seasons |
| Splice-In Installation | Overlaps cut gutter ends with fasteners and sealant | Integrates into standard seamless gutter workflow — no special tools |
| Watertight Design | Continuous channel with sealed connections | Maintains water flow — no leaks when properly installed at high points |
The Gutter Expansion Joint — also known as a thermal expansion connector, gutter slip joint, expansion coupling, contraction joint, and temperature compensator — is the professional solution for thermal stress protection on seamless gutter systems. Available in 5-inch (SKU: Z706609) and 6-inch (SKU: 6142849) sizes to match standard K-style residential and commercial gutters. Mill-finish aluminum construction with EPDM rubber flexible insert. GutterAll supplies professional gutter expansion joints and related thermal protection components to contractors throughout the region. Contact sales@gutterall.com for contractor pricing. Monday through Friday 7am to 4pm, Saturday 9am to 2pm PST.
Why Gutter Installation Contractors Specify Expansion Joints:
- Prevents Thermal Damage: Absorbs expansion and contraction movement — eliminates buckling, warping, and tears
- Eliminates Callbacks: Proactive installation prevents thermal damage complaints on long runs
- EPDM Rubber Insert: Flexible center rated -40F to 250F — handles all seasonal temperature extremes
- Mill-Finish Aluminum: Matches standard seamless gutter material — same appearance, same corrosion resistance
- Two Size Options: 5" for residential and 6" for commercial — covers most K-style applications
- Watertight Performance: Continuous channel maintains water flow when installed at high points
- Splice-In Installation: Integrates into standard gutter installation workflow — no special tools required
- Long-Term Protection: EPDM rubber provides decades of reliable service without degradation
- Professional Standard: Required equipment for runs over 40-50 feet — industry best practice
- UV Resistant: EPDM handles direct sun exposure without cracking or deterioration
- Cost-Effective Prevention: Minimal cost compared to repair callbacks and reputation damage
- Retrofit Capability: Can be installed on existing systems experiencing thermal stress
- Commercial Applications: Multiple joints protect extended commercial rooflines
- Verified Sizing: Damascus showroom available for gutter measurement verification
- Contractor Support: Volume pricing and installation guidance available from GutterAll team
Product Specifications
| Product Type | Gutter Expansion Joint / Thermal Expansion Connector |
| Size Options | 5" (Residential) | 6" (Commercial) |
| SKU — 5" | Z706609 |
| SKU — 6" | 6142849 |
| End Section Material | Mill-Finish Aluminum |
| Flexible Insert Material | EPDM Rubber (Black) |
| Construction | Two-Piece Aluminum with Flexible EPDM Center |
| Temperature Rating | -40F to 250F (EPDM rated) |
| Gutter Compatibility | K-Style Seamless Aluminum Gutters |
| Recommended Spacing | One joint per 40-50 feet of gutter run |
| Installation Location | High points only — water flows away from joint |
| Installation Method | Splice into seamless gutter with fasteners and sealant |
| Expected Service Life | 20+ years with proper installation. EPDM rubber maintains flexibility and UV resistance throughout service life. Aluminum resists corrosion in outdoor exposure. |
| Fulfillment Options | Ships nationwide | Local delivery | In-store pickup — Damascus, OR |
Who Specifies Gutter Expansion Joints
Gutter Installation Contractors (Primary)
- New seamless gutter installations on runs over 40-50 feet
- Commercial projects with extended rooflines
- Retrofit repairs for existing thermal damage
- Professional installations requiring callback protection
- Multi-story buildings where repair access is costly
- South-facing installations with maximum thermal cycling
Why it matters: Expansion joints are professional standard equipment for long runs. Including them in quotes demonstrates expertise, prevents callbacks, and protects contractor reputation. The minimal cost is insignificant compared to repair callbacks.
Property Owners and DIY Homeowners (Secondary)
- Repairing existing gutters with thermal damage
- Adding expansion protection to long existing runs
- Preventing future damage after observing warping
- Addressing buckled or separated gutter sections
- DIY gutter extensions requiring thermal accommodation
- Proactive protection on vulnerable south-facing runs
Why it matters: Property owners experiencing thermal damage can retrofit expansion joints to prevent recurrence. Installing at the damage location and every 40-50 feet along the run stops future stress accumulation.
Installation Guide — Gutter Expansion Joint Splice-In Method
- Plan joint locations: Calculate one expansion joint per 40-50 feet of gutter run. Mark placement at high points to ensure water drains away from the joint toward downspouts.
- Identify the high point: Using a level, locate the highest point in the section where the joint will be installed. Never install at low points or near downspouts.
- Mark and cut the gutter: Score and cut the seamless gutter cleanly at the marked high point using aviation snips or a gutter cutter. Make a straight, square cut.
- Clean cut ends: Remove all debris, burrs, and old sealant from both cut ends of the gutter to ensure clean bonding surfaces for the splice.
- Apply gutter sealant: Apply a continuous bead of quality gutter sealant around the inside of both aluminum end pieces of the expansion joint.
- Splice in the expansion joint: Slide each aluminum end over the cut gutter ends, ensuring proper alignment and correct water flow direction toward the downspout.
- Secure the connections: Use sheet metal screws or pop rivets to secure the aluminum end pieces to the gutter sections at regular intervals around the perimeter.
- Seal all seams: Apply additional gutter sealant over all fasteners and any exposed seams to ensure a watertight installation.
- Verify EPDM positioning: Confirm the flexible EPDM center section is properly positioned and not pinched, twisted, or restricted by fasteners.
- Test with water: Run water through the gutter to verify proper flow, check for leaks at the joint, and confirm drainage direction is correct toward the downspout.
Protect long gutter runs from thermal damage — essential equipment for professional installations.
5" and 6" sizes in stock. Add to cart or contact for contractor pricing.
Start a chat now | sales@gutterall.com | (503) 850-6784
Frequently Asked Questions
Why do seamless gutters need expansion joints? +
How often should expansion joints be installed? +
Where should expansion joints be placed in the gutter run? +
What is the return policy? +
How long does shipping take? +
How do I choose between 5" and 6" expansion joints? +
Installation Safety Notice
USE PROPER LADDER SAFETY. Gutter expansion joint installation requires working at height. Use appropriate ladder, maintain three points of contact, and ensure stable footing. Do not over-reach — reposition ladder as needed. Cut gutter ends create sharp edges — wear work gloves when handling. Use eye protection when cutting aluminum. Follow all manufacturer installation guidelines. When in doubt, hire a professional installer.
